Drop Cable Sc Optical Fiber G657A1/A2/ B3 Field Assembly Quick Connector Fast Connector

Product Description

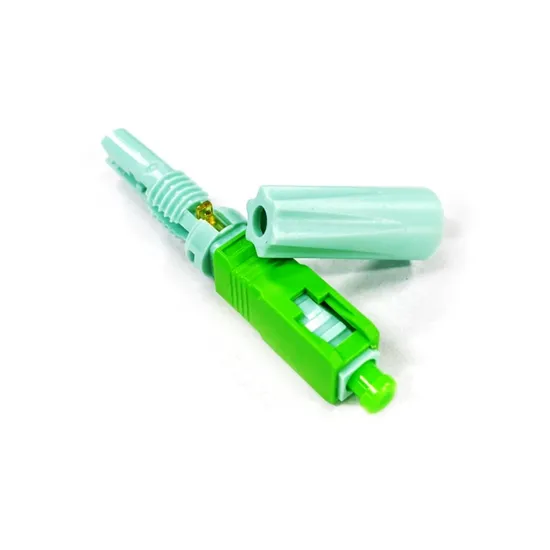

Drop/Indoor Cable SM/MM Field Assembly Quick Connector SC Fast Connector
The fiber fast connector features a push-tube type fastening structure for stable and reliable optical fiber docking. Its one-piece design ensures simplicity, stability, and excellent cost-effectiveness. With straightforward operation, it enables fast construction, high installation success rates, and easy maintenance.APPLICATIONS
· Fiber Patch panel.
· Distribution Frame
· FTTH
· Fiber-optic network equipment
· Cable television network FEATUREEmbedded optical fiber, factory polished, with built-in optical fiber refractive index matching fluid;Product length: 53.5mm (excluding the length of the flexible tail);Applicable optical cable: Mainly applicable to 2.0*3.0mm butterfly optical cable, Ф3.0mm, Ф2.0mm round optical cable, compatible with 2.0*1.6mm butterfly optical cable, Ф0.9mm round optical cable;Applicable fiber: Suitable for G657A1, A2, B3 fiber, fiber diameter 125um, cladding diameter 250um & 900um;Operating temperature: -25 to +75°C;Application scenarios: FTTH.
SPECIFICATION OF Fast ConnectorItemTechnical Parameters

Insertion Loss	AVG ≤0.3dB, MAX ≤0.5dB
Return Loss	SM: UPC ≥45dB, APC ≥50dB
Tensile Strength	≥30N (Ф0.9mm round optical cable ≥5N)
Mechanical Durability	500 times
Reassembly	≥3 times
Assembly Time	Butterfly cable ≤2min, Round cable ≤5min

Company Profile
Q: The History of our factory?
A: In 2000, Fibconet started our adapters business first and accumulated
funds, then we started producing jumpers in 2006. In 2009 We developed
the splitter workshop. The sales volume exceeded 15 million US dollars
in 2015. In the same year, we began to explore foreign markets.
Q: What kind of package do you usually apply for?
A: We usually use cartons, but they also can be customized
Q: Warranty policy?
A: Fiber Equipment Warranty Notice Warranty period:24months after buying, Generally, there are no questions for application in 20 years.

---
