Double Screw Extrudertwin Screw Extruder Machine Powder Coating Extruder

Product Description

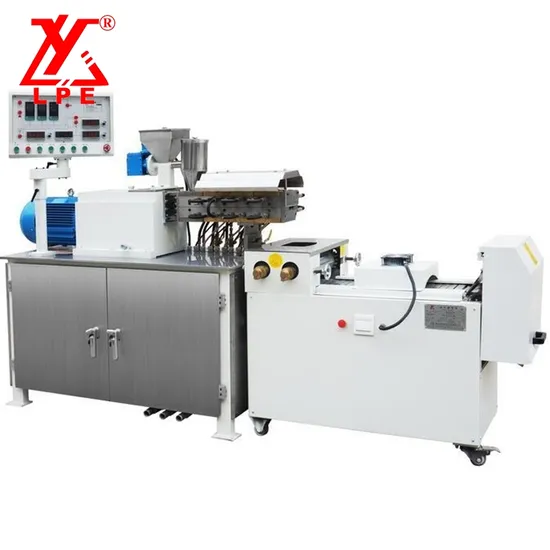

Twin Screw Extruder for Powder Coating Equipment
SLJ-H SERIES TWIN SCREW EXTRUDER
With high capacity, this series of extruders is an ideal equipment for extruding various chemical materials, wich can be fully hot melted to achieve excellent dispersed and kneading effect.
Main Technical Parameters of Twin Screw Extruder for Powder Coating Equipment:

Model	Output (kg/h)	Screw Speed (rpm)	L/D Ratio	Motor Power (KW)	Heating Power (KW)	Dimension (mm)
SLJ-20	10-15	0-500	14-48	3-4	3-4.8	1900*700*1400
SLJ-25	10-30	0-600	14-48	3-4	3-4.8	1900*700*1400
SLJ-30E	20-50	0-500	14-48	5.5-7.5	2.2-3.6	2600*630*1400
SLJ-35	80-120	0-500	14-48	9.2-11	2.2-3.2	3000*800*1400

Features of Twin Screw Extruder for Powder Coating Equipment:
1) High precision barrels with modular combination and horizontally-split clamshell design, easy color changing
2) Barrel has high efficient heat exchanging and automatic emperature controlling system with no solidification
3) Screw elements can be combined freely according to technical requirements
4) Screw, barrel and conveying parts are made of special alloy material to ensure the machine more durable
5) Strong self-cleaning ability, fine shearing and high mixing efficiency
6) Gear box is equipped with a separate lubrication and cooling system, with advantages of high torque, low noise < 60DB, high wear resistance, long lifespan, etc.
Detailed Photos


Company Profile

Lingyu Powder Machinery Co., Ltd, established in 1999, is specialized in researching and manufacturing of powder coating processing equipment, with strong technical strength and abundant practical experience. Now we have hundreds of different machine models and get certifficates of CE approved by TUV Cermany, ATEX by Sira England and PSR11 by ECM Italy.
Following the principle of "Quality first, Credit first and customer first", we are able to provide commissioning and installation support, formulation guidance and 24-hour aftersale service, which help us win great trust and support from customers.
Now Lingyu has become a well-know manufacturer for powder coating processing equipment both at home and abroad, with No. 1 market share. Products have been successfully exported to 50 countries and regions. Friendly business relationship with many world famous powder coating manufaturers has been established and kept in long-term.
We sincerely welcome you to our company for business visit and technical communication. Together with our sister company-Longcai Advanced Materials, mainly specialized in powder coating resins, we'll try our best to provide the best solution of powder coatings to our customers.
Exhibition
FAQ

Are you a factory or trading company?
BOGDA:We are a factory.
Can we visit your machine operation in your factory?
BOGDA:You can see machine operation in our factory.
Can the machine be customized?
BOGDA:Yes,it can.
How many electric, water, air need for the machines?
BOGDA: technical department supply the whole layout for workshop details.
Can I operate machine if don't have experienced engineers?
BOGDA: (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
Any quality checking before shipment?
BOGDA: 100% confirm, run and test machines before shipment with quality certificate.
How long is the guarantee?
BOGDA: 12 months since the first day customer operates (except wear parts)
How can u help us when face some technical problem?
BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

---
