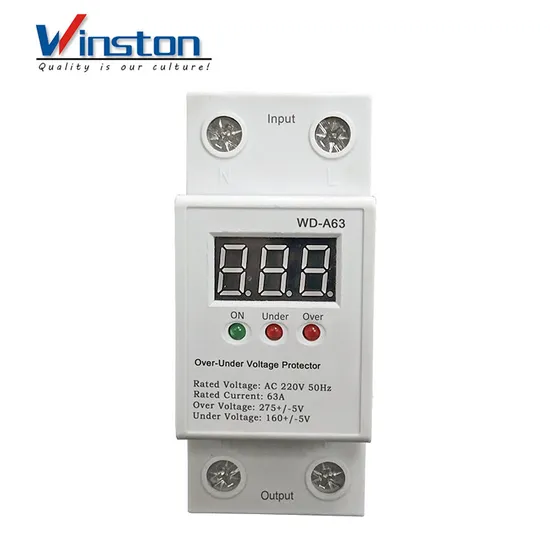

Wd-A63 16A 20A 25A 32A 40A 50A 63A Digital Self-Resetting Under and Over Voltage Protector

Product Description

Digital Self-Resetting Under and Over Voltage Protector
Application:
Mainly used for home and similar use of low-voltage distribution lines, when the line over voltage or undervoltage failure can automatically disconnect, and can automatically detect the line voltage, when the line back to normal when the automatic closure.

Products with high-speed low-power processing as the core control, high load capacity Magnetic holding relay for the main control circuit,
with online production voltage LED digital display, indicator light status indication, the product can be sustained under high pressure shock.

Timely protection of the safe use of load appliances. Product protection action when the neutral line is not open, in the installation should be consistent with GB16895.21 and other relevant installation procedures.
Features:

1. When the line undervoltage occurs in time to cut off the line, the line voltage back to normal when the delay automatically connected to the line, without human operation.
2. Line transient overvoltage or voltage sag and short interrupt, the protector does not move, to ensure reliable operation of the line.
3. Protector itself has a high voltage withstand capacity, line fault voltage continues to 440V, the protector can safely protect the function itself will not be damaged.
4. Effective voltage display range: 70-400V
5. withstand the impact voltage: 5KV
6. Outline Modulus Design: Rail mounting
7. Wiring capacity: 16mm2 and below the wire
Specification:

Rated operating voltage	AC230 / 50HZ
Rated operating current	10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Maximum short circuit withstand current	<40A 3000A,> 50A 6000A 10ms
Overvoltage action cutoff value	AC275 +/- 5V
Overvoltage recovery	AC255 +/- 5V
Undervoltage action cutoff value	AC160 +/- 5V
Undervoltage recovery	AC190 +/- 5V
Automatic closing delay after opening	25S
Action time	undervoltage action time 0.8S, overvoltage action time: 0.2S-5S
Own power consumption	<1.5W
Electrical machinery life	> 100,000 times
Dimensions	84 * 35 * 66
Working temperature range	-5 ~ 45C
Relative humidity	45 ~ 90% RH 40C
Altitude	<2000
