Professional Design Hydraulic Slitter Ss/ Al Coil Rotary Flying Shear with Air Floating Overturning Stacking

Product Description

Rotary Shear Line ZFL series Rotary shear line is mainly used for metail coil shear from decoiling leveling, rotary shear to stacker..
Appliction material:Alminum plate, cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, colour coated plate, stainless steel plate,copper plate etc.
Main Units
1.Entry coil car,
2.Uncoiler,
3.Precision Leveler,
4.Film applicator,
5.Measure the length roller,

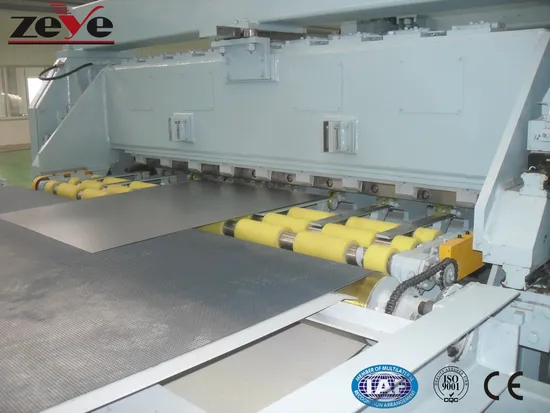

6.Rotary shear machine,
7.Belt conveyor,
8.Stacker
Rotary Shear Line Layout

Main Technical Parameters

Model	ZFL-1	ZFL-2	ZFL-3	ZFL-4
Material thickness	0.1-1.0mm	0.3-2 mm	0.3-3 mm	0.5-4 mm
Material width	300-1250	300-1600 mm	300-1800 mm	300-1800 mm
Finished length	300-2000	300-2000 mm	400-4000 mm	500-6000 mm
Length accuracy	<±0.3 mm	<±0.3 mm	<±0.3 mm	<±0.3 mm
Diagonal accuracy	<±0.5 mm	<±0.5 mm	<±0.5 mm	<±0.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1 mm/m2	<1 mm/m2
Line speed	90 m/min	80 m/min	75 m/min	70 m/min
Coil weight	10,15,20 t	10,15,20 t	15,20,25 t	20,25,30 t

Our advantages
1.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.
2. Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified.
Part of our customers Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.
Company introduction
Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business, ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.
We have one professional technical team and after sales service team, we are ready to serve you at any time.
Welcome to visit our factory. FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .

---
