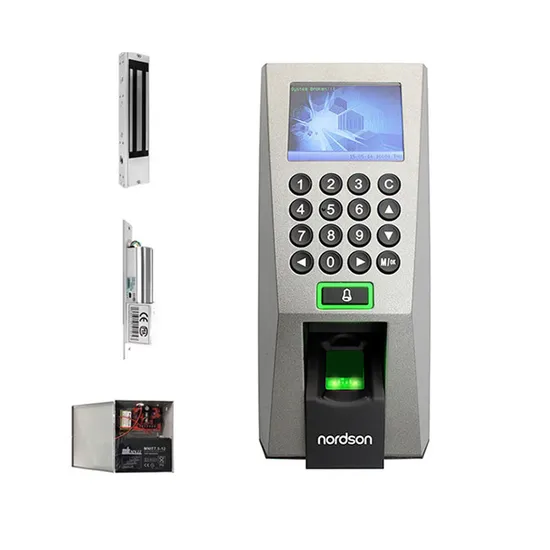

TCP/IP RS232/485 Network Fingerprint Access Control Time Attendance with Keypad LCD Screen

Product Description

TCP/IP RS232/485 Network fingerprint access control time attendance with keypad LCD screen
Specification:

Fingerprint Capacity	1500
Record Capacity	50000
Display	TFT LCD Color Screen
Communication	TCP/IP, RS232/485,USB-host
Access Control Functions	3rd Party Electric Lock, Anti-passback,Door Sensor, Exit Button, Alarm, Doorbell
Wiegand Signal	Wiegand Input and Output
Optional Functions	ID/Mifare/HID, Webserver
Power Supply	DC 12V
Verification Speed	≤0.5 sec
Operating Temp.	0°C- 45°C
Operating Humidity	20%-80%
Dimension	183mm*80mm*42mm (Length×Width×Thickness)
Gross Weight	0.82kg

Overview:
FR-F18 Fingerprint Access Control &Time Attendance Terminal is an innovative biometric fingerprint reader for access control application.The Terminal features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality infrared detection fingerprint sensor. The device offers flexibility to be installed standalone or with any third party access control panels .that support standard Wiegand signal. All the operations can be done on the TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS485 are available that the device can be used in different network.
Function:
1.TFT Color Screen
Audio-visual indication for acceptance and rejection of valid/invalid fingerprints.
More simple and convenient operation.
2.Slim and Elegant Design
Sleek and slim design for narrow spaces.
3.Fast and Accurate Fingerprint Algorithm
1 touch a-second user recognition.
Store 1,500 fingerprint templates, 10,000 cards and 50,000 transactions.
4.Full Access Control Features
Anti-passback. Webserver. Access control interface for 3rd party electric lock, door sensor, exit button, alarm and doorbell
5.Easy Installation and Connectivity
Wiegand input & output.
Network interface by TCP/IP or RS485
6.Easy Operation and Management
Work without computer.
Buzzer, 4×4 keypads and door bell.
7.Built-in serial and Ethernet ports.
Built-in USB port allows for manual data transfer

---
