Hole Wood Drilling Machine Wood Multi Boring Machine Wood Drilling Machine

Product Description

Product Parameters

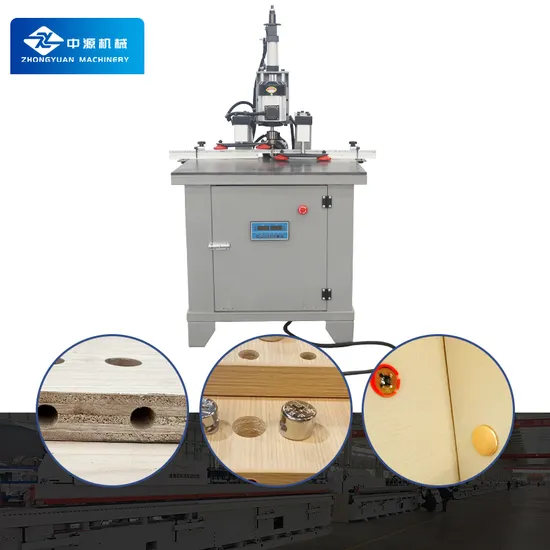

Vertical And Horizontal Drilling Machine
Thickened body, three-in-one drilling.Both vertical and horizontal drilling are possible.
Use: Used for drilling holes in the production of solid wood furniture. Its vertical spindle can be used to drill hinge holes or cabinet connection holes, and the side spindle is used to drill side holes and wood pin holes. The design of all-aluminum precision ruler, tool calibration device to ensure drilling depth, and high-configuration machine greatly improves production efficiency and saves labor costs.
1.Thickened guide rail,punching does not shake,stable performance to ensure accurate movement and adjustment of the vertical axis, low noise, easy replacement of drill bag.
2.Pure copper motor:Powerful power, good heat dissipation, stable output.
3.Cylinder pressing device, tightly presses the plate, the plate is stable and does not deviate during operation, preventing wrong operation.
4.Wear-resistant cutter head:High hardness and wear-resistant metal, high hole depth accuracy, stable operation, high punching accuracy, one-time forming, vertical and horizontal drilling can be done.
5.Limiting column flange plus scale, adjustable hole depth, vertical drilling without breakage, smooth incision.
6.Solid aluminum alloy ruler with positioning caliper, precise scale, can be adjusted according to work needs, accurate positioning.
7.Foot pedal control, safe and labor-saving, easy to operate.
8.Control panel:Clear markings, button switching, simple operation, easy to use.

Supply voltage	AC380V/50HZ	Spindle speed	2870 r/min
Rated power	3kW	Number of spindles	2
Air Pressure	0.4-0.6Mpa	Workbench size	80x50cm
Net weight	190kg	Maximum size	100x140x160cm

Detailed Photos
Company Profile
Certifications
FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.
Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.
Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.
Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.
Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
