LED Boat Marine Lighting 5700K Navigation Light 500W Searchlight 220V

Product Description

led outdoor flood lights Stadium floodlights 50W 100W 200W 300W 400W 500W 600W 800W 1000W 1500W Led 400W twin floodlights motion sensor floodlight SMD3030 chip aquarium light color black parking lot light 50W off road 200W floodlight
Commercial Floodlights
5000k 45 Degree Beam Angle 500W LED SMD Flood Light
Basic Info

Model NO.:	LCD-SCH-Module50-100	Color Temperature:	Warm white/ Cool White/ Naturel white
Lamp Body Material	Aluminum Alloy	Power	50W-500W
Projection Distance	>8m-40m	Application	Park, Square, Factory, Garden, Stadium,oil & gas plant, chemical plant, Mining
IP Rating	IP65 / IP66 / IP67	Certification	CE, CQC, EMC, LVD, RoHS, TUV, ATEX, IECEx
Operating Voltage	30-46VDC	Input Voltage	90-360VAC
LED Chips Brand	High quality Cree / bridgelux	Rated Power	50-500W
Beam Angle	15, 20, 60, 120, 140 Degree	Replace HID /HPS	400-3000W
Working Humidity	10%-95%	Insulation Class	Class I
Power Factor	>0.95	THD	<15%
Working Frequency	50 / 60Hz	Coating	Powder Coated ---yellow
Net Weight	7KG-39KG	Trademark	LCD brand
Transport Package	1 Unit Per Carton	Specification
Origin	ShenZhen, GD, China	HS Code	85391000
Ex mark	Exdemb IICT4/T6	Mounting way	Bracket / suspend / pole

Product Description
Good Heat Dissipation High Lumen Outdoor Explosion proof 50W-500W LED Flood Light - Most powerful LED light released, ultra solution for professional applications- 50W-500W system power and 7000-70000 lumen, output 32 lux at 40meters distanceFeatures & Characteristic:50-500W system power & 7000 -70000 lumen5-7 year warranty80% lumen maintenance over 60,000hours90-600VAC input voltage without additional adapter0-10VDC & DALI dimming driver availablePhotocell & motion sensor system availableBuilt-in surge protection & thermal protectionMaintenance freeMercury free, No UV or IRInstant start & flicker freeHigh uniformity & color rendering index >70
Typical application:Sea Port | Airport | Bridge | Architecture | Gas & Chemical Industrial Facility | Stadium | High Mast | Plaza | oil industrial | Professional Lighting50-500 Watt LED ffloodlight Datasheet:

Model:		SCH-Module50-50	SCH-Module50-100	SCH-Module50-150	SCH-Module50-200	ZHGL-1000A
Beam Angle:		15°	20°	60°	120°	140°X60°
Stable Flux (5700K after 1 hour)		100,000lm	105,000lm	110,000lm	120,000lm	102,000lm
Dimension:		671X405X374mm	671X405X322mm	671X405X204mm
Powder Consumption	LEDs:	45-450W
	Driver:	5-50W
	Total:	50-500W
Replace HID Lamp:		200W-3000W
New Weight:		3.9-39kg (7.8-78 lbs)with stainless steel floodlight bracket
Color Temperature:		5700K(2700-6500K available on request)
Color Rendering:		≥Ra75(≥Ra80,≥90 available on request)
Working Life:		≥50000Hrs
Housing:		Aluminum Alloy
Finish:		Cathode EPD
IP Class		IP65 (Upgrade to IP67)
Insulation Class		Class I
Working Temperature		-30~+50C/-40~140F
Working Humidity		10%~95%
AC Input		80~360VAC, 400~600VAC
DC Input		100~400VDC, 500~800VDC
THD		<15%
Power Factor:		>=0.95
Warranty:	LED Module:	5-7 Years
	Driver:	5-7Years
	Housing:	10 Years

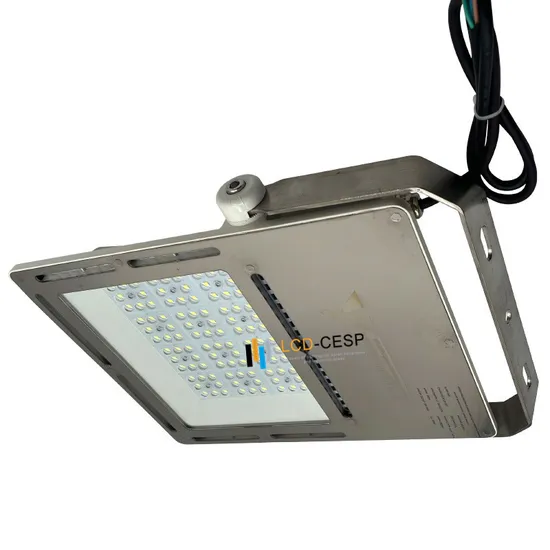

Picture: SCH-Module50-50
SCH-Module50-100
Flexibal Mounting System:
Beam Angle:
Projects
Company Information:LCD-CESP LIGHTING Co., Ltd. was established in 2010, before 2010 we were one of the most advanced provider of power supply and we worked with many important companies in world, including EU, Japan, and USA etc.Technology skill and High quality are always playing key roles on LCD philosophy, We are working on high power professional LED lighting products and are also providing our clients with lighting layout design and brightness calculation of projects. LCD would always be your first choice of professional LED lighting supplier. Customer Question & Answer FAQQ1. Are you a trading company or factory?We are the factory based in the city ShenZhen China since 2010.we acquired and worked to ISO9001quality standard since 2012 and we are the TUV audited manufacturer. Q2. How much will the shipping cost of LED light?We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide. Q3. How can I make orders for LED light?Please see the following order info:•Delivery term: FOB ShenZhen/Shanghai, EX-Work, CFR, CIF •Payments terms: T/T, western union and L/C •Delivery time: 3-5 days for sample, 7-15 days for bulk orderWe accept mini order.Q4. How do you ensure the quality of LED light?We are strictly focus on quality control. All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection. Q5. Do you offer free sample of LED light?Sample are not free, however, sample price with be same with bulk order's. Q6. How long can I get your reply?We respond to every inquiry within 24 hours.

---
