Qm K Series Dhg Floating Socket Aviation Metal Push-Pull SMA Solar Redel Compatible RJ45 M12 Connector Amphenol Banana Plug Socket Terminal Connector

Product Description

Product Description

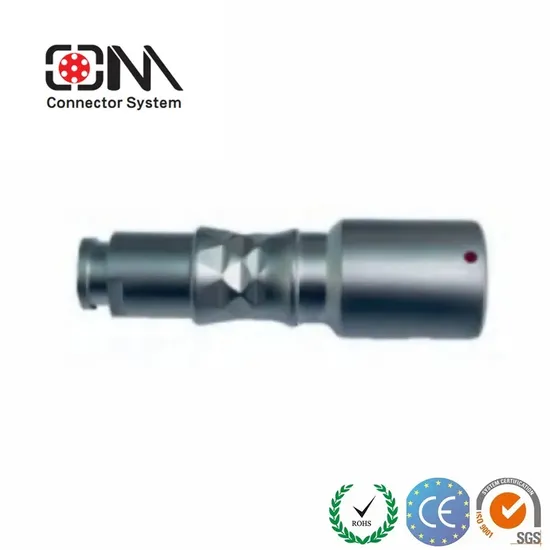

DHG floating socket, connector, waterproof
K series connectors are suitable for extremely harsh outdoor environments, protection level can be up to IP68
K series connectors are specially designed for outdoor applications
All models of this series can be waterproof when plugged in and reach the protection level of IP68 when properly assembled with the corresponding cable.
Product Features
With/Without sheath tail cap
With cable clampWith cable clamp
Various positioning pins to prevent mis-insertion
Related Applications
Infantry Vehicle
Lithography Machine
Autonomous driving control system
Detailed Photos
Features
The k series has the same insulator as the B series, and its main features are:
Fast push-pull self-latching system
Rugged housing design is suitable for the extremely harsh working environments
360° shielding provides all-round EMC protection (anti-electromagnetic interference)
Locating pin system, G is a standard locating pin, used for connector alignment
2-40 multi-cores can be selected
Waterproof connection (IP67/ IP68)
Welding, crimping, and PCB(Printed Circuit Board) pin core(Straight type or angle type)
Various locating pins options can avoid mixed insertion between similar connectors

High-density installation can save space
Specification
Technical characteristics of K series connectors
Mechanical properties and environmental factors:

Specification
Number of inserts	>5000
Humidity	At 60ºC, the highest humidity can reach 95%
Temperature rang	-55ºC ~ +200ºC
Vibration	10-20000Hz, 15g
Mechanical shock	100g.6ms
Salt spray corrosion test	>96h
Protection level	IP68
Connecting mode	Push pull self-locking

How to choose model
Product Parameters
Technical parameters of DHG floating socket
Category: Waterproof K series
Model: DHG
Series :0K, 1K, 2K, 3K
With Tail Cap

Item		Size
Series	Model	A	L	S2
0K	DHG	13	34	8
1K	DHG	15	45	9
2K	DHG	19	54	13
3K	DHG	23	64	15

Without Tail Cap

Item		Size
Series	Model	A	L	S2
0K	DHG	13	38	7
1K	DHG	15	48.5	9
2K	DHG	19	52	12
3K	DHG	23	65	15

Company Profile
QM connector is a Chinese manufacturer of waterproof push-pull connectors. We aim to provide high-quality connectors for our customers. The push-pull connector is a small and convenient spare part for your equipment. It can be used in medical devices such as endoscopies, can be used in national defense garments, base stations for telecommunication, and automatic machines such as dispensing machines, etc. Our waterproof self-locking connectors have different series that will fit your requirement in different equipment. We also provide customize service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfaction is our motivation!
a) Good after-sale service, all questions will be replied to within 12 hours.
b) Customized design is available. ODM&OEM are welcome.
c) We can provide a free sample, but the buyer should handle the posting fee.
d) Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e) High quality and the most competitive price.
f) Advanced produce and inspecting equipment.
How to produce?
We provide Lemos-compatible connectors. waterproof push-pull circular M12 metal waterproof connector. Our factory is located in Shenzhen, China. If interested. feel free to contact us for samples, specifications, and quotations. Looking forward to receiving your message and solving your connection problem. PUSH PULL WATERPROOF CONNECTOR LEMOS-LIKE B SERIES CONNECTOR CUSTOMIZED CABLE ASSEMBLY 20 YEARS EXPERIENCE IN CONNECTOR CE/ ISO9001(2008)/GJB9001C-2017/ROHS/SGS CERTIFICATE MEDICAL/INDUSTRIAL/OPTICAL/MEASURE/NAVIGATE/DRONE PROVIDE SAMPLE AND TECHNOLOGY SUPPORT
FAQ
Q1. Are you a manufacturer or trading company?
QUANMA: We are a professional manufacturer of push-pull connectors our sales service
department is in Shanghai and our factory is in Shenzhen Q2. What's the lead time after placing an order?
QUANMA: Normally we will deliver your order 7-12 working days after placing the order. Q3. Is your connector compatible with another brand connector? QUANMA: B series is compatible with the LEMOS connector.
Q4. How many fields can be used for this kind of connector? QUANMA: QUANMA connector is now widely used in the fields of measurement, medical,
audio-video, national defense use, navigation, security, aviation, industrial control, automotive and power, etc.
Q5: How are our orders packed and delivered? QUANMA:
Our connector will pack and ship to you safely. We will pack it as you required.

---
