Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Expanding Method
Dry Expansion
Applicable Materials Shape
Granular
Transport Package
Iron Net Box Package
Production Capacity
10000set/Year
Product Description

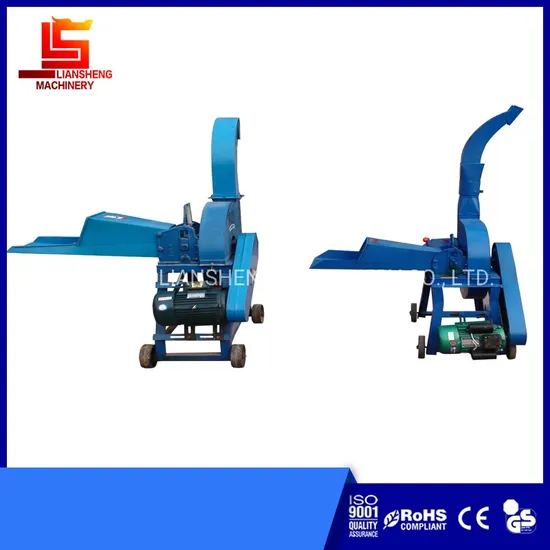

Hot sale mini multifunctional silage chaff cutter / straw crusher / forage hay cutter for feed processing
Silage hay cutter
Forage crop crusher is used for cutting green (dry) of corn stalks, rice straw and other forage crops, straw and agricultural animal husbandry machinery. Fed mainly by the general body, guillotine shear machine,throwing bodies, transmission, running gear, protection devices and rack components.
1. Matching electric motor to work, we can match both 50Hz and 60Hz electric motor, 110V, 220V, single phase, triple phase...
2. High cutting efficiency.
Model | Power (kw) | Weight(kg) | Dimension(mm) | Output(t/h) |
YWFZ-0.4 | 2.2KW | 60 | 550*450*600 | 0.4_1.0 |
YWFZ-1.0 | 3KW/4HP | 80 | 650*500*600 | 0.8-1.5 |
YWFZ-3.0 | 3 Phase 5.5KW | 160 | 1230*1150*1695 | 1-3 |
YWFZ-1.5 | 3KW/4HP | 115 | 820*460*1150 | 1-2 |
YWFZ-2.0 | 3KW/4HP | 125 | 920*500*1160 | 1.5-2.5 |
YWFZ-5.0 | 3 Phase 5.5KW | 350 | 2690*1210*2390 | 4.5-5.5 |
YWFZ-8.0 | 3 Phase 7.5kw | 480 | 3110*1500*2860 | 6-8 |
YWFZ-10.0 | 3 Phase 15kw | 1000 | 3510*1800*4210 | 8-10 |
YWFZ-12.0 | 3 Phase 18.5kw | 1285 | 3810*1900*4230 | 12-18 |
YWFZ-15.0 | 3 Phase 22kw | 1500 | 4100*1950*4350 | 15-20 |
YWFZ-20.0 | 3 Phase 30kw | 2000 | 4350*2050*4550 | 20-30 |
YWFZ-30.0 | 3 Phase 45kw | 3000 | 4850*2350*4550 | 25-38 |
RFQ: Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance
,balance before shippment.
If you have another question, pls feel free to contact us as below: Contact: Allen Gao
Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China
>>
