| Parameter | Specification |

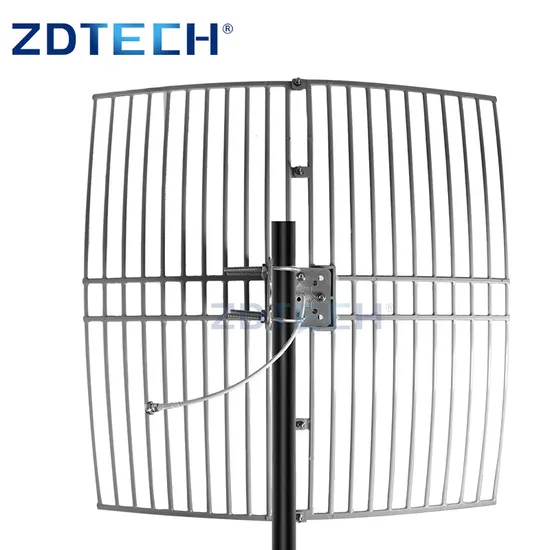

| Type | Rectangular Grid Antenna |
| Frequency(MHz) | 4400-5000 |
| Polarization | Dual linear polarization Vertical and Horizontal |
| Impedance(Ohm) | 50 |
| VSWR(:1) | 1.5 |
| Power Handling(CW) | 50 |
| Gain(dBi) | 25min. |
| Lightning Protection | DC Grounded |
| Operating Temp(ºC) | -40°to +70° |
| Storage Temp(ºC) | -40°to +90° |
| Forward Sidelobes Ratio(dB) | 0° to 90° >15dB 90° to 180° >20dB |
| Connector | N type female |
| Weight(Kg) | 2 |
| Size(cm) | 60(W)x 60(H)x 41(D)max. |
| Finish | Anti UV coating |
| Color | |
| Mounting Type | Pole |
| Mounting Material | Aluminum |
| Mounting Mast Diameter | 35-50mm |
| Windload(N@ 150Km/h) | FRONT 350 SIDE 80 |
