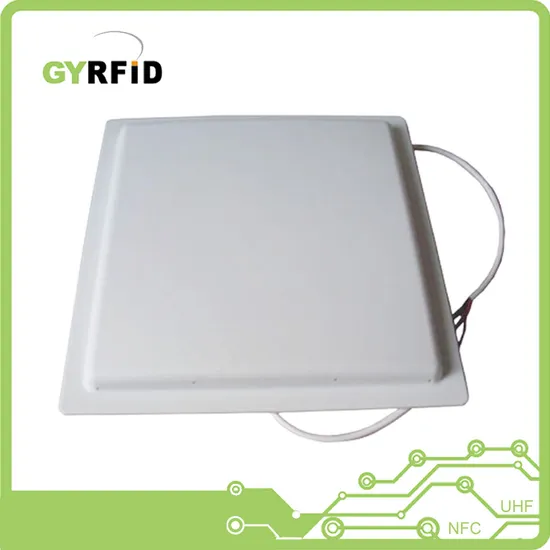

Uhg Gen2 RFID MID-Range Reader for Parking Sytem, Inventory Tracking Systems (RFID101)

Product Description

RFID101 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit andindustrial production process control system.
Specifications:
Self-intellectual property
Support: ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
RF output: Power up to 30dbm(adjustable)
Work mode: Support auto-running, interactive and trigger-activating work mode
Frequency: 902~928Mhz (frequency customization optional)
Operating Mode: FHSS or Fix Frequency transmission
Power: 0~30dBm (optional)
Reading Speed: 64bits, <10ms
Reading Range: 0-6m
Signal: Buzzer
Antenna: Polarized Antennas inside, 8dbi
Power Supply: DC+9V (with adapter 220V)
Size: 235× 235× 57mm
Weight: 2.5KGs
Application:
Logistic management/ warehouse control / Parking system / automatic production management / library system etc
About GYRFID
GYRFID is a leading supplier of smart cards and RFID tags products for global System Integrators and distributors. It offers a wide range of products embedded with contact chip and contactless chip (LF, HF, UHF), which encapsulated into variety shapes like ISO Card, keyfobs, wristband, disc tag, laundry tag. The products are widely applied in access control, payment system, inventory control, asset tracking, industrial managements. GYRFID also welcome OEM service and personalization to create value for the sponsors.

---
