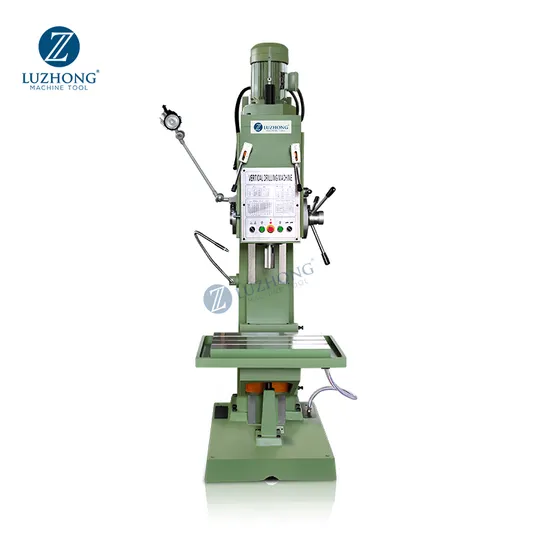

Metal high precision Z5132 vertical square column drilling machine

Product Description

Metal high precision Z5132 vertical square column drilling machine
Product Description
Product Parameters

SPECIFICATIONS	Units	Z5132
Max. drilling dia.	mm	32
Max.feed resistance	N	12000
Max. allowble torque	N.m	200
Spindle taper	-	MT4
Spindle travel	mm	200
Distance between spindle nose and table surface	mm	710
Distance from spindle axis to column surface	mm	280
Spindle box travel	mm	200
Spindle speed range	rpm	50-2000
Spindle speeds steps	-	9
Spindle feed range	mm/r	0.056-1.8
Spindle feed steps	-	9
Table size	mm	550*400
Table travel	mm	310
Main motor power	kw	2.2
Coolant motor power	kw	0.09
Machine weight	kg	1150
Overall dimension	mm	980*807*2302

Detailed Photos
Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
