SS304 Hole/Slotted Screen Basket for Plastic Classifiers

Product Description

1, the high quality
2, high cost-effective
3, sincerely to every customer
Upflow Pressure Coarse Screen Paper Pulp MachineApplication:
It is used for various waste paper pulp of coarse screening.
Design Features:
The new high-efficiency energy-saving upflow rotor and high-performance large-flow processing capacity screen basket developed by fluid dynamics can save 30% -60% of the power loss and improve the screening efficiency. Specially designed high-flow structure to obtain higher production capacity; up-flow design extends the life of consumables.
Technical Parameters:

Model	SCS400	SCS500	SCS600	SCS700	SCS1000	SCS1300
Screen hole size(mm)	1.2-2.6	1.2-2.6	1.2-2.6	1.2-2.6	1.2-2.6	1.2-2.6
Screen slot size(mm)	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7	0.3-0.7
Capacity(24hours)	250-400	350-500	400-600	500-700	900-1000	1100-1300
Inlet consistency(%)	2.5-3.5	2.5-3.5	2.5-3.5	2.5-3.5	2.5-3.5	2.5-3.5
Inlet pressure(Mpa)	0.15-0.3	0.15-0.3	0.15-0.3	0.15-0.3	0.15-0.3	0.15-0.3
Motor power(kw)	11-22	22-37	37-55	55-75	75-90	90-150

Remark: The yield will change due to different types of pulp, consistency and other factors. The capacity in the table is only for selection.

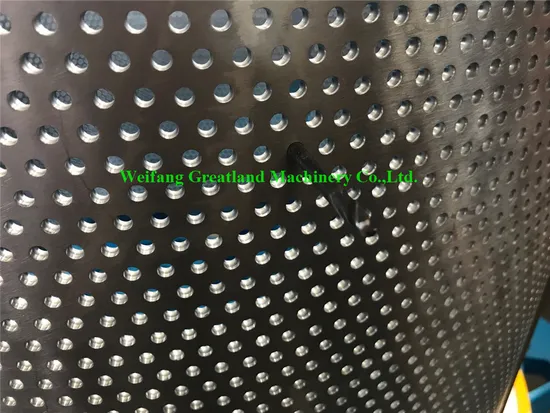

SSS304/SS316 Wedge wire slot/hole screen basket for paper pulp machine

Production scope:
Deviation of slot width should be controlled within 0.02mm.
Chroming thickness is 0.20-0.30mm.
Surface hardness is more than hrc 60-66(hv700-900)
Plate area:0.4-23m2
Our service
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly.Greatland will try best to solve the problems from the customer.
Within the quality guarantee, greatland settle the problems on site.
About us
GLM is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training.Besides, glm was funded by the pulp and paper design institute, pulp equipment mill and paper-making machinery company, and in turn gathers together talents from each part.Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.:We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end.Fully check and test takes before shipment.
Q.:Where is your factory located?How can i visit there?
A.:Our factory located at shandong, china.You can fly to qingdao international airport directly.We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.:One year guarantee for key parts of machine, machine installing and worker training service, free technical support whole life.

---
