| US$75,000.00-80,000.00 | 1 Piece (MOQ) |

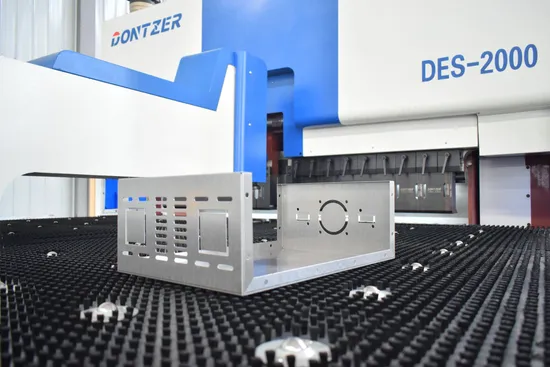

| DES-2000 | ||
| Fastest bending speed | ≤0.2 sec/knife | |
| Maximum bending length | 2000mm | |
| Bending height | 175mm | |
| rated voltage | 380V | |
| peak power | 22KW | |
| average power | ≈2.2KW | |
| noise value | ≈40db | |
| Overall dimensions | About: L590cm X W290cm X H320cm | |
| total mass | About 18.5 tons | |
| software running platform | Windows CE | |
| software | Dongze self-developed | |
| Clamping method | Custom made | |
| Maximum bending thickness (standard knife) | Stainless steel 1.0mm | Special panels can be customized |
| Cold plate 1.5mm | ||
| Aluminum plate 1.6mm | ||
| Minimum material thickness | 0.35mm | |
| Minimum size for quadrilateral forming | Custom made |
| Minimum size of bilateral one-time forming | About 220mm | Can Be Customized |
| Hinge knives (2 sets) | Apolegamy | |
| Advanced Instructions | √ | Standard Configuration |
| arc command | √ | Standard Configuration |
| Replaceable fixtures | √ | Apolegamy |
| C-axis > 360° | √ | Standard Configuration |
| Self-lubricating systems | √ | Standard Configuration |
| Partial load detection | √ | Standard Configuration |
| Partial load follow-up | √ | Standard Configuration |
| Plate thickness detection | √ | Standard Configuration |
| Automated loading and unloading interface | √ | Standard Configuration |
| Flattening function | √ | Standard Configuration |
| Pressing the dead edge up and down | √ | Standard Configuration |
| handwheels | √ | Standard Configuration |
| Automated Pipeline Interface | √ | Standard Configuration |
| Warranty | 1 year | Lifetime technical support |
