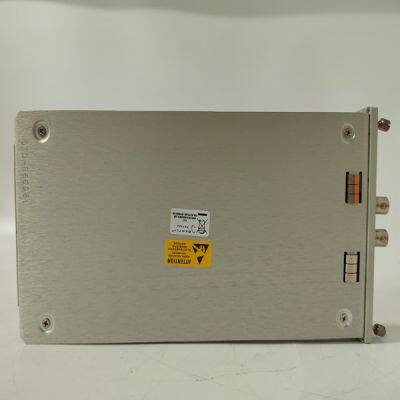

BENTLY 3500/25 149369-01

Product Details

Product Description

Product Description
Brand: BENTLY
Type:3500/25 149369-01
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Product features • Up to 8 digital inputs • 8 digital 2 A outputs • 2 digital inputs with interrupt • Short-circuit detection • Permanently short-circuit proof • Electronic rating plateShort description The DM 27x/A series is a digital input/output module of the KeConnect C2 product line and enables the connection of 6 or 8 digital inputs and 8 digital outputs. 24 V DC control signals are captured by the digital inputs and transmitted galvanically isolated to the higher-level automation device. In addition, two of the digital inputs can be used as interrupt inputs. The digital outputs switch the 24 V DC control signals of a CPU module galvanically isolated from the connected actuators. In addition to the short-circuit connection, outputs that cause short circuits can be switched off individually. This module is attached directly to a CPU module or can be operated with all KEBA controls by means of a bus coupler.
Number / wiring of inputs 8x sink 6x source Input type Type 1 (acc. to EN 61131-2) Voltage range for "1" 15 V ≤ UH ≤ 30 V Voltage range for "0" -3 V ≤ UL ≤ 5 V Debouncing Configurable 1 ms, 100 ms Cycle time 1 ms Status display Green LED Galvanic isolation Yes, electric strength 707 V with isolated ground connection Interrupt inputs Number of inputs Two of the digital inputs can be used as interrupt inputs Voltage range for "1" 15 V ≤ UH ≤ 30 V Voltage range for "0" -3 V ≤ UL ≤ 5 V Response time of the K-bus interrupt 50 μs Status display Green LED Galvanic isolation YesSupply voltage 24 V DC from front (nominal voltage tolerance: 19.2 V to 30 V, acc. to EN 61131-2) 24 V DC from K-bus, 5 V DC from K-bus Overvoltage category II Protection class III acc. to EN 61131-2 Addressing on K-bus Via 16-digit address switch, on the side Type of terminals Open - pitch 5.08 mm Max. power consumption K-bus 24 V 1.9 W Max. power consumption K-bus 5 V 0.4 W

---
