Wet Type Paste Mixer Machines Dry Chemical Mixing Equipment Powder Blender Blending

Product Description

Description

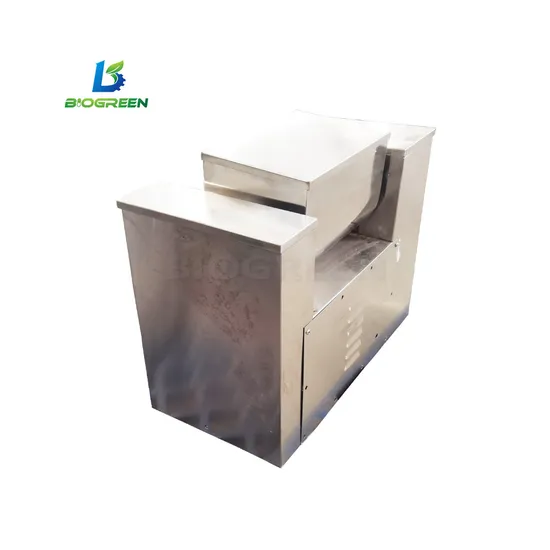

CH Series Trough-type Mixer
is used for mixing dry powder in many industries such as pharmaceutical industry, foodstuff industry chemical
industry, electronics industry and so on. Particularly it is suitable for mixing raw materials that have high
requirement in uniform and high difference in specific gravity. Its features are compact, simple in operation,
beauty in appearance, convenient in clean, good effect in mixing and so on.

Model	Volume (L)	Motor power (kw)	Speed of stirring (rpm)	Inclined angle (°)	Overall dimensions (mm)	Weight (kg)
CH-50	50	1.5	24	105	1200*500*950	320
CH-100	100	2.2	24	105	1400*580*1000	350
CH-150	150	3	24	105	2000*630*1150	410
CH-200	200	4	24	105	2300*750*1350	450
CH-300	300	5.5	24	105	2700*850*1500	520
CH-500	500	11	24	105	2500*900*1600	700
CH-600	600	11	24	105	2600*950*1700	800

Working Principle & Features:
1. This machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture
material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.
2. There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring
shaft to prevent radial turbulence caused by negative stress.
3. The sealing at both ends of the mixing shaft has been improved, and it can be completely sealed
without contaminant material.
4. When jogging is used, it is easy to discharge, and it will not cause the phenomenon that the hopper
tilts too much. The left end of the machine rotates. Because the worm wheel and the worm drive have
self-locking effect, the mixing box can be dumped at any angle. .
5. Add the raw material to the cylinder at one time, dry it for a period of time, add the adhesive or spray
the liquid, or add the raw material and the adhesive to the working container at one time, and mix it into
the ideal soft material.

---
