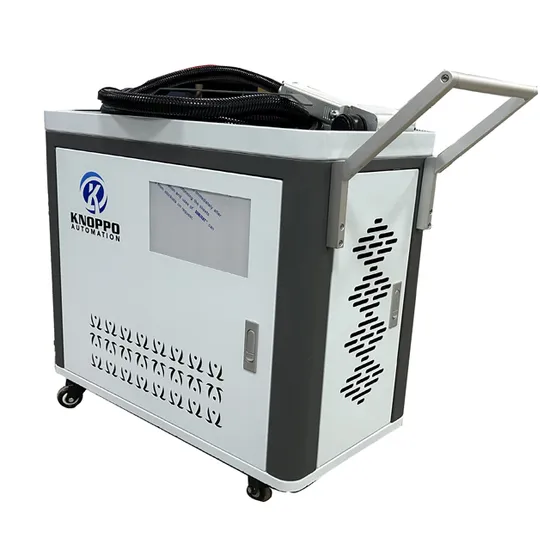

Mini Portable Pulse Cleaner Hand Held Fiber Laser Cleaning Machine

Product Description

KC-M Pulsed Fiber Laser Cleaning Machine 100W 200W 300W 500W
Product Description

Application
1. Mold industry
The laser can make the non-contact cleaning of the mold, which is very safe for the surface of the mold, can ensure its accuracy, and can clean the sub-micron dirt particles that cannot be removed by traditional cleaning methods, so as to achieve truly pollution-free, efficient and high-quality cleaning.
2. Precision instrument industry
The precision machinery industry often needs to remove esters and mineral oils used for lubrication and corrosion resistance from parts, usually chemically, and chemical cleaning often leaves residues. Laser deesterification can completely remove esters and mineral oils without damaging the surface of the parts. The laser promotes the explosive gasification of the thin oxide layer on the surface of the part to form a shock wave, which results in the removal of contaminants rather than mechanical interaction.
3. Rail industry
At present, all the pre-welding cleaning of rails adopts grinding wheel and abrasive belt grinding type cleaning, which causes serious damage to the substrate and serious residual stress, and consumes a lot of grinding wheel consumables every year, which is costly and causes serious dust pollution to the environment. Laser cleaning can provide high-quality and efficient green cleaning technology for my country's high-speed railway track laying production, solve the above problems, eliminate welding defects such as seamless rail holes and gray spots, and improve the stability and safety of my country's high-speed railway operation.
4. Aviation industry
The surface of the aircraft needs to be repainted after a certain period of time, but the original old paint needs to be completely removed before painting. Chemical immersion/wiping is the main paint stripping method in the aviation field. This method results in a large amount of chemical auxiliary waste, and it is impossible to achieve local maintenance and paint stripping. This process is heavy workload and harmful to health. Laser cleaning enables high-quality removal of paint on aircraft skin surfaces and is easily automated for production. At present, this technology has been applied to the maintenance of some high-end models abroad.
5. Shipbuilding industry
At present, the pre-production cleaning of ships mainly adopts the sand blasting method. The sand blasting method has caused serious dust pollution to the surrounding environment and has been gradually banned, resulting in the reduction or even suspension of production by ship manufacturers. Laser cleaning technology will provide a green and pollution-free cleaning solution for anti-corrosion spraying on ship surfaces.
Product Parameters

Model		KC-M
Laser Type		Pulsed Fiber Laser
Wavelength		1064nm
Cable Length		5m
Laser Power		100W / 200W / 300W/ 500W
Laser Source		MAX/Raycus
Controller		Chaoqiang
Scanning Width		10-100mm
Cleaning efficiency		12m*2/h
Pulse frequency		20-2000KHz
Beam length		2cm-10cm
Beam width		0.06/0.08mm
Removal speed		Oxide layer: 9m^2/h ; Rusty scale: 6m^2/h; Paint, coating: 2m^2/h; Dirt, carbon layer: 5 m^2/h

Detailed Photos
Safe removal of hazardous coatings & contaminants Eliminates need for grinding/sanding/grit blasting Won't damage sensitive parts or historic surfaces Free of solvents, chemicals, abrasives, water, dust & noise Creates oxide-free metal surfaces Environment-friendly
Configuration
Raycus Laser Source
It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, surface treatment, and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
S&A Water Chiller
S&A water chiller is a rack mount cooler designed for cooling up to 2KW handheld laser welding machine and mountable in a 19-inch rack. Because of the rack mount design, this industrial water cooling system allows stacking of related device, indicating a high level of flexibility and mobility. Temperature stability is ±0.5°C while the temperature control range is 5°C to 35°C. This circulating water chiller comes with a high performance pump. Water fill port and drain port are mounted on the front together with a thoughtful water level check.
Packaging & Shipping
Wooden box package , safedelivery.


Certifications
Our fiber laser welding machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Company Profile
Knoppo Automation is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 laser cutting systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.
The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine , laser welding machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.

---
