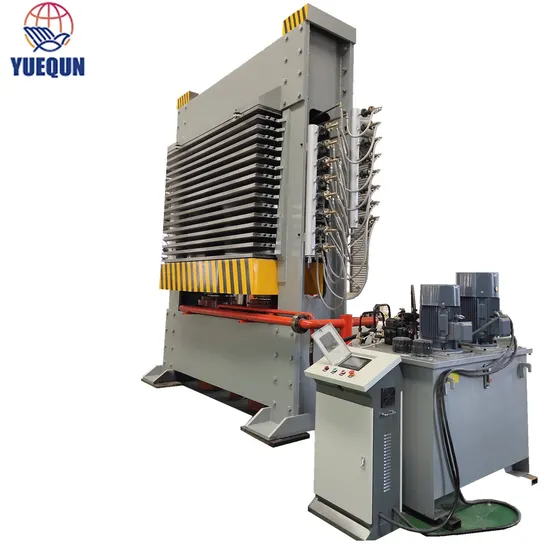

Factory Price Hydraulic 15 Layers 600t Hot Press for Plywood Making Machine

Product Description

duct Description

Model	YQHP4X8/500/15
Max pressure	500 Tons
Board feeding direction	Transverse
Layers	15Layers
Layer spacing	70mm
Number of hot press plate	16pcs
Hot press plate size	2700*1370*42mm
Cylinder	2*ø360mm*1050mm
	1*ø180mm*1050mm
Stroke	1050mm
Compression resistance	≤25 Mpa
Total Power	7.5KW+18.5kw
Low pressure pump flowing	250ml/r*1pcs
high pressure pump flowing	10ml/r*1pcs
Overall dimension	3550mm*1370mm*4650mm
Working methods	Full
Composite frame	Assembled
Upper and bottom beam	900mm
Middle beam	400mm
Thickness of the frame	35 mm
Weight	About 33Tons

Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging

---
