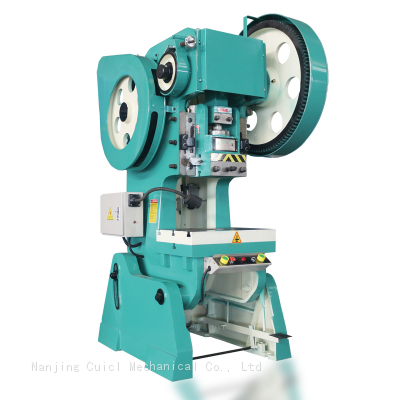

| Type | J23-80T | |
| Nominal Pressure（kn） | 800 | |
| Nominal Pressure Stroke（mm） | 8 | |
| Ram Stroke（mm） | 120 | |
| Slipper stroke times（t/min) | 50 | |
| Max Closing Height（mm） | 380 | |
| Closing Height Adjuster（mm） | 100 | |
| Distance between slipper centre and machine（mm） | 260 | |
| Work bench dimension | Front to back (mm) | 480 |
| Right to left (mm) | 750 | |
| Diameter of blank-holding hole | Front to back(mm) | 220 |
| Right to left (mm) | 340 | |
| Diameter(mm) | 190 | |
| Slipper underside bore | Front to back (mm) | 240 | |
| Right to left (mm) | 370 | ||
| Size of die handle bore | Diameter(mm) | 60 | |
| Depth(mm) | 80 | ||
| Pole distance (mm) | 300 | ||
| Diatance between bench to guideway(mm) | 380 | ||
| Max tilting angle (°) | 20 | ||
| Pad thickness (mm) | 90 | ||
| Motor power(kw) | 7.5 | ||
| Dimension | Front to back (mm) | 1750 | |
| Right to left (mm) | 1300 | ||
| Height (mm) | 2600 | ||
