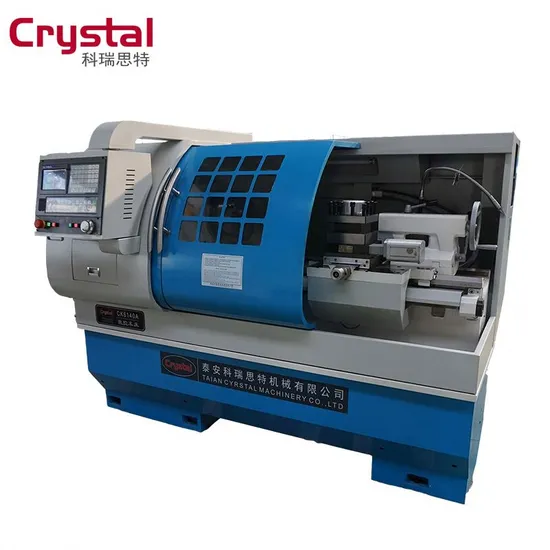

Chinese GSK Control CNC Turning Lathe Machine Price

Product Description

The currency exchange rate fluctuates greatly, please consult customer service for the best price.
Chinese GSK Control CNC Turning Lathe machine Price Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Main Features:
Frequency conversion stepless speed regulation
Higher working efficiency
Higher rigidity cast iron
Fully enclosed-safety

CK6140A Specification:

Max. swing over bed	mm	Φ400
Max. swing over cross slide	mm	Φ225
Max. processing length	mm	750/1000
Spindle Taper		MT6
Thu-hole dia. of spindle	mm	Φ60
Max. spindle speed	rpm	150-2500
Chuck size	mm	250
Spindle motor	kw	5.5
X/Z axis Position accuracy	mm	0.01/0.015
X/Z axis repeatability	mm	0.012/0.013
X/Z axis feed motor torque	N.m	X:5 Z:7.5
X/Z axis fast feeding speed	Mm/min	X:6 Z:8
Tailstock sleeve travel	#	120
Tailstock sleeve taper	#	MT4
Tool post type		4 -piece electric tool post
Tool bar section	mm	20*20/25*25
Machine dimension (L×W×H)	mm	2120/2370×1400×1700
N.W	Kg	1800/1950

Standard configuration:
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
Siemens system /Fanuc system
Hydraulic chuck/ pneumatic chuck
Hydraulic collet/ pneumatic collet
6-piece electric tool post/8- piece electric tool post/ Gang type tool
Auto bar feeder

---
