Leica Guided Laser Screed Leveling Machine

Product Description

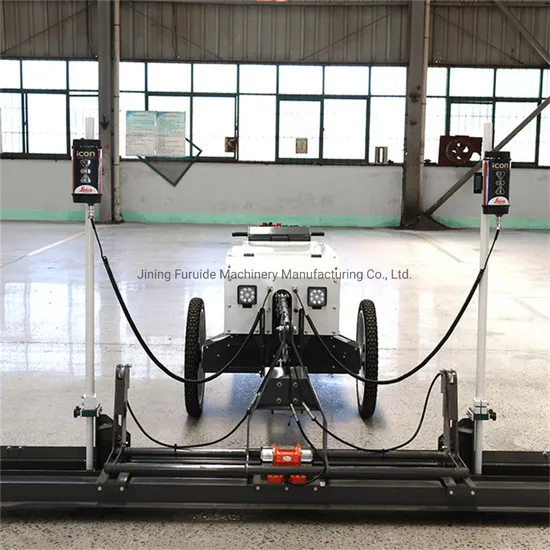

Leica Guided Laser Screed Leveling Machine FDJP-24D
Laser screed machine mainly used for large area concrete construction concrete screeding, such as square,
workshop, airport, playground and so on. Laser screeds can realize the high planeness and levelness of concrete
screeding requirement.
Technical Parameter:

Model	FDJP-24D Laser Screed Leveling Machine
Engine Model	HONDA GX200 Electric Start	Screed Head Type	Rocking type
Type	4 Stoke, OHV, Single Cylinder Gasoline Engine	Screed Width	2600mm
Power	2.8kw	Exciting Force	500N
Lubricant L	0.6L	Vibration Frequency	50Hz
Fuel Consumption	300g/kwh	Screed Plate Level Control	Electric Automatic Control
Fuel Oil Volume	12L	Laser Control Type	Microcomputer Laser Scan
Drive	Reducer+Walking Motor	Operation Mode	Walk-behind
Wheel	Solid Tire/ Beach Tire	Forward and Backward	Switch Control, CVT
Running Speed	0-40m/min	Steering	Hydraulic Control
Working Speed	5m/min	Weight	420kg
Machine Size(LxWxH)	2860mmX2280mmX1172mm

Features:
1) This product can pave the concrete base,trowel the concrete and vibrate it to smooth. The work efficiency will
be improved because the machine can set the height of elevation automatically, and the operator can finish the
working area fast and efficiency.
2) This product is small, light, easy to operate, with reasonable price, 13HP of Honda petrol engine ,strong start
capability, and run more smoothly.
3) Adopts imported Leica laser transmitter and Moba receiver, which have good performance.
4) Two kinds of tyres optional.
Jining Furuide Machinery Manufacturing Co., Ltd (FURD)FURD is a high-tech enterprise of research, production and sales, established in 2008 and covers an area of 30,000 square
meters production workshop. FURD has high-precision laser cutting machine, plasma cutting machines, CNC boring
machines, CNC bending machines, robot welding equipments and first-class painting spray production workshop, can meet
customer's customization products requirements.
FURD mainly produce small ride on road rollers, walk behind double drum road rollers, walk behind single drum road
rollers, concrete laser screed, mobile light tower and road crack sealing machines.
FURD has passed National High-tech Enterprise certification, ISO9001 quality certification, ISO1400 environmental.
Products have CE certification and SGS and BV approved factory checking reports, the engines for FURD machines have
EURO 5 and EPA, emission meet EU and USA standard.
Thanks for paying attention to our product, for more detailed information, please feel free contact us, we will do
our best to satisfy you.
Welcome to send inquiry to us.

---
