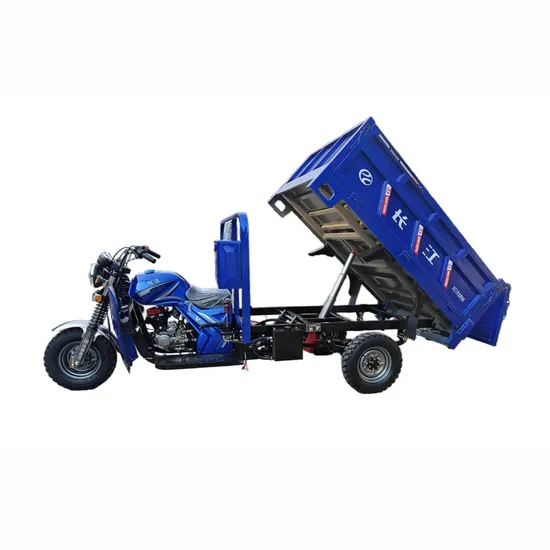

200cc Engine Cargo Three-Wheel Motorcycle/Three-Wheel Loader with Hydraulic Dump

Product Description

Detailed Photos
Product Parameters

parameter status	Specification Description
Engine Model	Single-cylinder four-stroke water-cooled
Start Method	Electric start,/foot start
Cooling Method	Air Cooling
Engine Shift Mode	5-digit international file
Magneto Model	12v/8 class
Max Power (kw/rpm)	11kw/7500 r/min
Max Torque(N.m/rpm)	15N ▪ m/5500 N.m/rpm
Engine displacement	200ml
Vehicle size(mm)	L3720*W1300*H1580(mm)
Cargo size(mm)	L2000*W1300*H560(mm)
Maximum speed	70Km/h
Rated load	1200KG
Wheelbase(mm)	2550 mm
Rear Wheel Track (mm)	1150 mm
Min Ground Clearance (mm)	280 mm
Net Weight (kg)	510kg
Frame	40*80 keel(thickness 3.0mm),40*80 rear flat frame (Thickness 2.5mm)
Leaf Spring	5+4/60*10(mm), 16KG/rack
Front Shock	Φ50 Longbao reinforced spring hydraulic shock absorber, Fangxing cast aluminum, six-level electroplating,
Rear axle	The car's full suspension afterburner axle, 220mm brake pot, Speed Ratio 13:37
Tire Model	Front 5.00-12,/rear 5.00-12
Hydraulic dump system	Single-cylinder hydraulic self-unloading (Dingli MAX750, 3T single-cylinder hydraulic)
Drive mode	Shaft drive
Braking method	Mechanical Brake/Brake Hub
Baattery	12V/14Ah maintenance-free lead-acid battery
Can Choose Colour	red, blue, black, white, yellow, green
Loading method:	CKD parts
Loading Q'ty	42 pcs /40'HQ

Company Profile
Henan Niegui Import and Export Trade Co., Ltd. is located in Luoyang city, Henan Province, which is the"Ancient Capital of China"."the Peony city in China", "the origin of Chinese Civilization &Culture" .It is near the"WORLD CULTURAL HERITAGE"--the Longmen Grottoes and the ShaolinTemple,20 minutes by car from Luoyang Airport, and 90 minutes by car from Zhengzhou Airport.
The company is mainly engaged in production and sales: motorcycles, side tricycles, electric vehicles, electric cargo tricycles, mopeds, motorcycle parts, engines, etc. The company produced more than 120,000 vehicles,
Its brand"CHANGJIANG"is very famous in China and has nearly 60 years history until now .The total investment is 600 million yuan and the building area is 90,000 square meters. With a total number of 450 people, the company has three standardized workshops, modern business office buildings, staff restaurants, and apartment buildings.
The company has two modern assembly production lines, a coating production line, an electrophoresis production line, a surface treatment line, a carriage molding production line and other large-scale complete production facilities and equipment. Robot welding technology is adopted for the frame and carriage. Possess advanced inspection and testing equipment: three-coordinate measuring instrument, leaf spring test bench, front shock absorption test bench, electrical test bench, tire comprehensive test bench, two vehicle inspection lines, ensuring the consistency of the factory products and all the factory products In line with national standards.
The company has always adhered to "quality first, customer first" for many years, established an extensive sales network, and its products are sold all over the world. The company focuses on quality and keeps promises, and ranks among the best in the same industry in the country. Continuously improve the level of enterprise management, has passed ISO9001: 2008 international quality management system certification, 3C certification, passed the Ministry of Industry and Information Technology production access assessment announcement, obtained production qualifications and followed IS09001 management standards, all products have "CCC" certificates, some products have " EEC" certificate, now exported to the European market. Products are exported to Egypt, Myanmar, Nepal, Cambodia, Russia, France, Italy, Australia, Britain, South America, Africa, Central Asia and other countries and regions.
Welcome the friend all over the world come to visit us and cooperation! Packaging & Shipping

---
