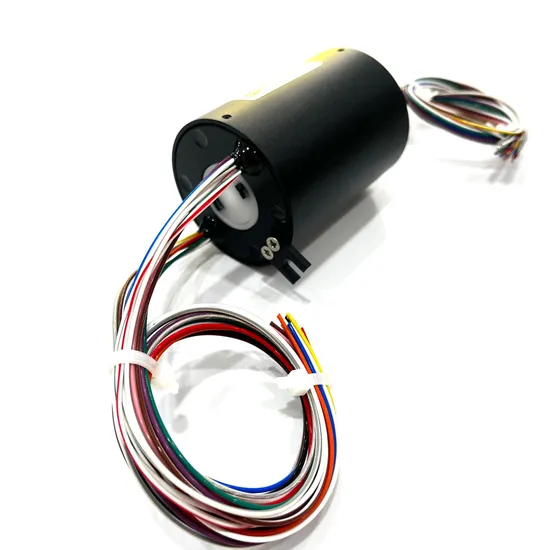

Thr-000t-2005 Barlin Times Slip Ring Supplier for High Quality 56mm Non-Type Slip Ring

Product Description

PS: Please kindly send us exact technical requirments so that we can recommend you the best solution. Thanks for your understanding!
General Description
Through bore slip rings (also known as "through hole slip ring") are slip ring with through bore, this series are designed for being installed with flange on a sleeve bracket, also they totally meet with continuous transmission of power and/or signal under 360 degree unrestrained rotations. This kind of slipring use hollow shaft that applies the best advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and maintenance free. Barlin Times standard through bore size could be from 12.7mm- 190mm are optional, the standard circuits are 6 rings, 12 rings, 18 rings and 24 rings are available, the current can be alternative from 2A-800A. Standardized & modularized design, we could fully customize the best suitable product according to the special requirement of customer in different applications.
Features:
1.Modular design & compact design.
2.Transmit various analog and digital signal.
3.Low wear and long work life time.
4.Compatible with data bus protocols.
5.360 degree continuous rotary power transmission or data signal. Option:
1.Current & Voltage
2.Circuits
3.Hollow shaft size, outer diameter and length
4.Work speed
5.Housing material and color
6.Protection degree
7.Lead wire exit direction
8.Lead wire length
9.Connector type
10.Signal and power transmitted single or together Application:
1.Radar, antenna, robotics.
2.Turn table, rotary sensor.
3.Engineering machinery equipment, cable wheel, test machine.
4.Packing machine, medical equipment.
5.Handling process control equipment.
6.Military equipment.
7.Wind turbine generator.
8.Emergency lighting machine, exhibition/display equipment.
Specification:

Circuits	20 circuits
Work Speed	0-500RPM
Work Temperature	-20ºC~+60ºC
Work Humidity	60%RH or higher
Voltage Rating	380VAC/DC
Current Rating	5A
Dielectric Strength	≥1000VAC@50Hz between each circuit
Insulation Resistance	1000MΩ@500VDC

Contact Materials	Precious Metal
Lead Wire Size & Length	Teflon®UL Standard 300mm
Housing Materials	Alluminum Alloy
Protection	IP54 or higher

Length of Slip Ring (mm)

Remarks: More bigger current or circuits, please feel free to contact with us.

Drawing:
Highly apprecaited for your support and interest. Welcome your consulting and contacting!

---
