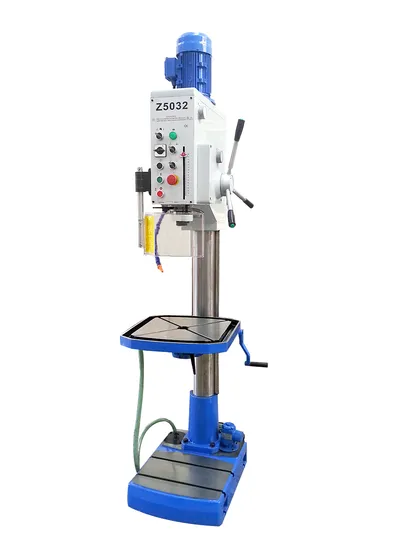

Z5032 Auto Feed Vertical Drilling Machine for Metal Working

Product Description

Product Description
Main features:
(1)Drilling, milling and tapping;
(2) Head swivels 360 degree horizontally;
(3) Headstock and Worktable up & down perpendicularly;
(4) Super high column;
(5) Precision micro feed;
(6) Positive spindle lock;
(7) Distinct auto device for releasing tools, operate easily;
(8) Geared drive, lower noise;
(9) Spindle Auto-feeding.
Main Specification:

Model	Z5032/1	Z5040/1	Z5045/1
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Spindle travel	130mm	130mm	130mm
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Step of spindle feed	6	6	6
Range of spindle feed	0.06-0.30mm/r	0.06-0.30mm/r	0.06-0.30mm/r
Distance from spindle axis to column	290mm	290mm	290mm
Distance from spindle nose to table	725mm	725mm	725mm
Distance from spindle nose to base	1125mm	1125mm	1125mm
Max.travel of headstock	250mm	250mm	250mm
Swivel angle of headstock	360/ 90 degree	360/ 90 degree	360/ 90 degree
Max.travel of worktable	600mm	600mm	600mm
Worktable size	380x300mm	380x300mm	380x300mm
Swivel angle of table	360 degree	360 degree	360 degree
Table tilt	+/-45 degree	+/-45 degree	+/-45 degree
Size of stand base	417x416mm	417x416mm	417x416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Net weight/Gross weight	437kg/487kg	442kg/492kg	442kg/492kg
Packing size	1850x750x1000mm	1850x750x1000mm	1850x750x1000mm

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
