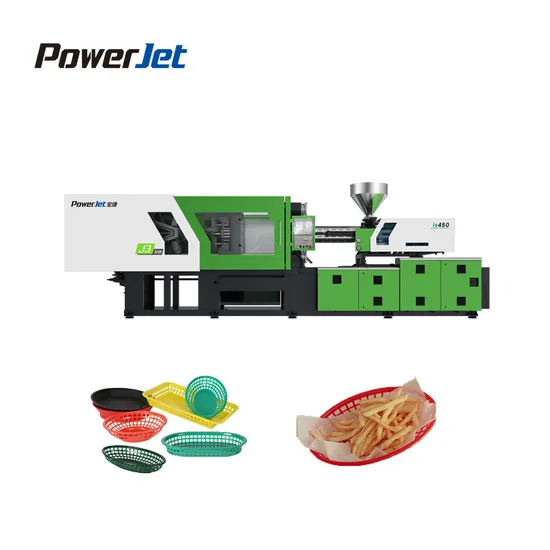

High-Precision Automatic Plastic Injection Molding Machine for PP, ABS, and Pet Preforms

Product Description

STANDARD INJECTION MOLDING MACHINE
With The New Driving System For Our Standard Injection Molding Machine, BJ Series Saving More Energy Than Before. The Motor Will Stop At The Stage Of Cooling For Saving Energy And Also Can Provide Higher Injection Accuracy And Speed.

Clamping Force - 50~1380(Ton)
Driving System - Hydraulic
Motor Type - Servo Or Variable
Applications - Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.

FEATURES:
Servo Motor System shipment
Comparing with the traditional hydraulic machine, S6 series can save more 50% of the power, energy saving is more obviously during pressure hold & cooling stage.

Clamping System:
Reliable and durable, Effective mold protection High repeatability of mold opening and closing.

Injection System:
Stable & precise, easy for adjustment & operation by efficient separating screw and high mixing screw increase the range of material used.

Control System:
User-friendly control system, powerful, fast, precise control, easy to operate, the program can meet various process needs.

Lubrication System:
Major friction parts are equipped with lubrication points. Electric lubricant pump controlled by computer sends automatically lubricating oil (grease) to lubrication points.
Product Description

	DESCRIPTION	UNIT	BJ288
CLAMPING UNIT	Clamping force	KN	2880
	Opening stroke	mm	550
	Max.datlight	mm	1160
	Platen size	mm	890*890
	Space between bars	mm	610*610
	Max.mold height	mm	610
	Min.mold height	mm	280
	Ejector stroke	mm	145
	Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	60
	Screw L/D Ratio	L/D	21
	Injection Pressure	MPa	169
	Shot volume	cm3	791
	Screw stroke	mm	280
	Screw speed	rpm	170
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	22/41
	Heater power	kW	13.8

Company Information

Packaging & Shipping
Our Services
Please feel free to consult us to know more information.
