Efficient Crusher for Pulverizing Waste Wood From Biomass

Product Description

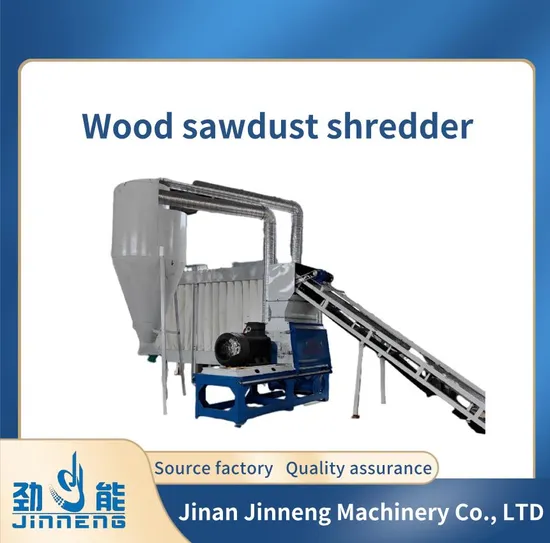

110kw JN65x1300 High-Efficiency Pulverizer The 110kw JN65x1300 High-Efficiency Pulverizer, manufactured by Jinan Jinneng Machinery Co., LTD, is a powerful hammer mill designed for efficient grinding and pulverizing.
Key Features:
Motor and rotor installed on the same base, directly connected by coupling
Rotor passed dynamic balance test, allowing rotation in both forward and backward directions
Symmetrical operation doors with safety interlock on both sides
Operation doors facilitate sieve plate and hammers renewal, as well as checking and debugging
Feed inlet placed on top of the crusher, compatible with various feed equipment
With its robust construction and advanced design, the JN65x1300 High-Efficiency Pulverizer ensures reliable performance and easy maintenance. Whether you need to grind or pulverize different materials, this machine offers exceptional efficiency and versatility.
Product Description
Product Description Welcome to Jinan Jinneng Machinery Co., LTD! We are proud to present our latest product:
High-Efficiency Sieve Machine Our high-efficiency sieve machine is designed to meet the reading habits of English-speaking natives. With its exceptional features and benefits, it is sure to exceed your expectations.
Main Features:
The sieve holes are not easily clogged, ensuring uninterrupted operation.
Smooth operation with low noise, providing a comfortable working environment.
Simple structure and convenient maintenance, making it easy to use and maintain.
Adopting a special mesh, it offers high screening efficiency and a long service life.
The hammer blade is made of high manganese alloy steel, providing excellent wear resistance and an extended service life.
The machine is composed of various components including a feeding port, a feeding guide mechanism, an upper hell, a bearing seat, a rotor, an operating door, a base, and a motor. Each component is carefully designed to ensure optimal performance.
Experience the difference with our high-efficiency sieve machine. It is the perfect solution for all your screening needs.
MAINLY PARAMETERS:

model	power (KW)	output T/H	draught fan(KW)	cyclone dust collector	fabric filter	air-lock valve	Number of hammer pieces	Overalldimension Length x width x height(mm)	screen size(mm)	weight(T)
65-1000	90/110	'3-4	18.5	Φ1200	50	500x50	96	2600x1300x2600	2piece x988 x820	2.5t
650-1300	110/132	5	22	Φ1500	100	500x50	132	3000x1300x2600	2piece x1322 x820	3T
1600-1000	160/185	,6-8	15	Φ1200	50	600x60	144	2700x2300x2750	2piece x1600 x1400	4-4.5T

High Efficiency Crusher Advantages
Dynamic Balance Test: The hammer error is within 0.2G, ensuring stable machine operation.
Bearing Seat: Made of bearing steel, the large and wide bearing seat ensures stable crusher operation.
Tungsten Spot Welding: The hammer is made of tungsten spot welding, resulting in a thick and highly effective hammer.
High Discharge Port: The crusher's discharge port is high, preventing material blockage.
Anti-Caulking Plate: Equipped with an anti-caulking plate wood hammer crusher feed port to prevent material collapse.
Vertical Feed: The grinder has a vertical feed, allowing for smooth feeding.
For more information, please visit the website of Jinan Jinneng Machinery Co., LTD.

---
