Ck6140 Precision Flat Bed Metal Automatic CNC Lathe with Price

Product Description

CK6140 Precision Flat Bed Metal Automatic CNC Lathe with Price

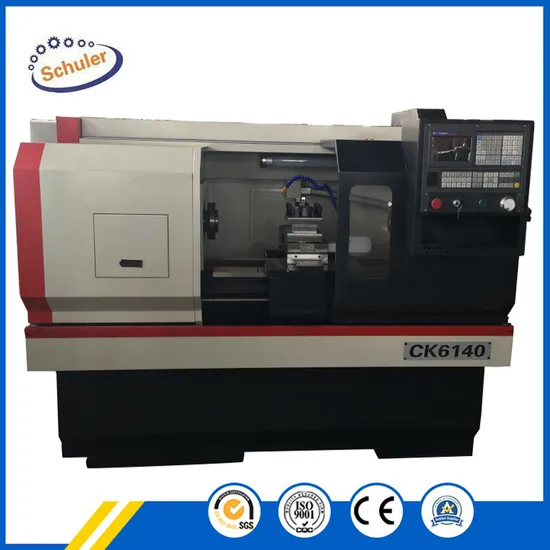

Product Picture:
Product Description:
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Application:
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
CNC Lathe Technical Parameters:

Specifications	Unit	CK6140
Max.swing over bed	mm	Ф400
Max.swing over cross slide	mm	Ф180
Distance between centers	mm	1000/1500
X/Z axis travel	mm	X:220 Z:1050/1600
Spindle transmission type		Mechanical 2 gear transmission ,in gear variable speed
Spindle speed steep		variable
Spindle speed	rpm	L:70~560,H:200~1600
Spindle nose		C6
Thru-hole dia.of spindle	mm	52/82
Spindle taper		MT6
Spindle motor	KW	5.5
Chuck size	mm	200
Ball screw dia.and pitch	mm	φ25X6/φ40X8
X/Z axis feed motor torque	N.m	X:6 Z:10
X/Z axis feed motor power	KW	X:1.5 Z:2.5
X/Z axis fast moving speed	mm/min	X:6000 Z:8000
X/Z axis Position accuracy	mm	0.02/0.025
X/Z axis repeatability	mm	0.01/0.015
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ra1.6
Tailstock sleeve dia.	mm	65
Tailstock sleeve travel	mm	140
Tailstock sleeve taper	#	MT4
Guide form		Spindle mountain+flat rail
Total power capacity	KVA	10
Machine dimension(L×W×H)	mm	2500/3000X1500X1650
N.W.	kg	1800/2300

Detail Display:
CNC Lathe Precision Bed:
CNC Lathe Packaging:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Shandong Schuler CNC Machinery Co.,Ltd.
Add: Tengzhou City ,Shandong Province ,China
Edwin
Mob: +86-18663288651

---
