Automatic Broiler Farming System Poultry Equipment for Chicken Farm

Product Description

Product Description
Automatic Poultry Farm Equipment for Broiler
---Broiler Systems Product Description
Part-1

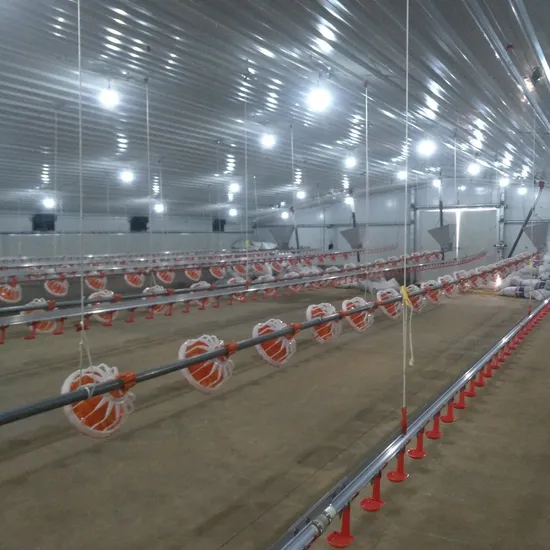

Broiler Pan Feeding Line include the Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed deliver Auger, Suspension system and other necessary parts. Hi-hope select the most stable and quality drive motor to ensure the whole line stable and efficient working automatically. And the flexible auger is from the world top auger supplier Technical System. Feeder could be used from day one to moved out, and feeder designed with the maximum feed bearing capacity to supply more birds. The whole line design aim to get the best FCR for customer chicken growing.

Part-2
Feed Storage and Feed Fill System include the feed silo, flexible feed delivery auger, PVC feed delivery pipe, drive motor and other necessary parts. It's benifit with simple, high quality and efficiency.

Feed Fill System	75mm	90mm
Max Delivery Length	60m	40m
Gear Motor	1.1HP/1.5HP,50/60HZ, 1 PHASE/3 PHASES	1.1HP/1.5HP,50/60HZ, 1 PHASE/3 PHASES
Delivery Capacity	1400KGS/H	2500KGS/H

Part-3
Climate Control System Include the tunnel fans, air inlet, cooling pad & tunnel door.
1-Tunnel Fans
Performance

Fan Model	Static Pressure		Air Flow		Motor
	Pa	In.H2O	M3/H	CFM	Voltage(V)	Frequency(HZ)	Phases
54in Fiberglass Cone Fan	0	0	55000	32600	220v-380v	50/60	1 or 3
	12.5	0.05	53100	31300	220v-380v	50/60	1 or 3
	25	0.1	50800	29900	220v-380v	50/60	1 or 3
50in Galvanized Cone Fan	0	0	49530	28465	220v-380v	50/60	1 or 3
	12.5	0.05	40194	23100	220v-380v	50/60	1 or 3
	25	0.1	37236	21400	220v-380v	50/60	1 or 3

2-Curved Air Inler
Performance

Static Pressure		Air Flow		Air Inlet
Pa	In. H2O	M3/H	CFM	Size(mm)
12	0.05	4050	2383	1100*330
25	0.1	1980	1165	1100*330

3-Evaporative Cooling System

4-Tunnel Door System

a-Special selects panel material for better insulation in different climate conditions
b-Modular panel design allows maximum flexibility in door size to match house sidewall openings
c-Better mixing the fresh cold air and hot air prevent the chicken flock away from the cold stress.
d-No more dead zone at side and end walls
e-Better guide the air flow to the center of the roof
f-Automatic controlled the opening size by the controller in different bird age.
Part-4
Controller & Control Panel
The ventilation control system consists of computerized controller, tempreture sensors, humidity sensors, negtive pressure sensor and alarm system.By means of the sensors and preset tempreturers, humidity, and negative pressure, the controller can regulate tempratures, moisture, wind speed and negative pressure in the house.
We control panel select the world top brand electronic components to enure safety of the chicken farm.
Part-5
Lighting System-Dimmable
Part-6
Heating system-LB White& Damily Brooder and space heater

Packaging & Shipping
All the product supplied by Xinmao are packed with the export standard packages and suitable for lone distance ocean transportation.

After Sales Service

Xinmao have an experienced after-sales team with 20 years already. And we have a specially-assigned people orgnised all the questions feedback by our valued customers. We will give a quick respond within 24 hours with your problems.

Our Advantages
Xinmao could offer you one stop service include:
1-Farm Design Consulting
2-Farm Layout/Design
3-Turnkey Design-Build
4-Steel Building Packages
5-Poultry Equipment Packages
6-Construction Supervision
7-Construction Management Service ( Just for Philippines and Indonesia Market)
8-Bio Security Facilities
9-Organic Fertilizer/Chicken Manure Treatment
10-Feed Processing Facilities & Buildings
For More Details, Welcome to Communicate with Email.Thanks!

We Care More of Your Chicken!

---
