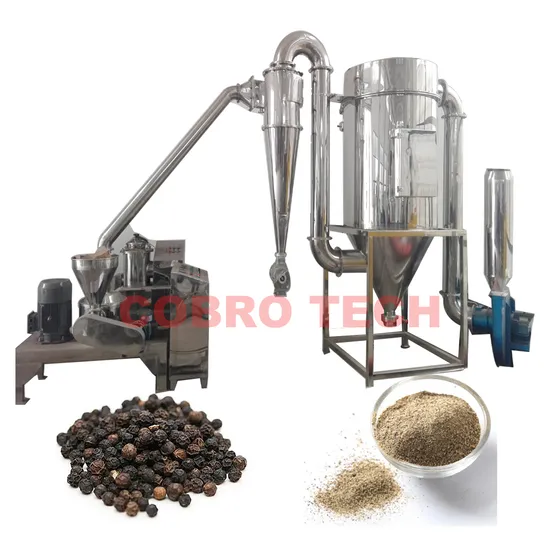

Automatic Cinnamon Moringa Black Pepper Pulverizer Air Classifier Pin Mill

Product Description

Product Description Automatic Cinnamon Moringa Rice Black Pepper Air Classifier Pin Milll
The air classifier pin mill consists of hopper,fixed discs,rotating discs,motor,dust collector (optional),control box and other related parts.It makes use of the high speed relative movement of the movable fixed disc and the rotating disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.the crushed material can be discharged directly from the grinding chamber of the machine and the desired granule size can be obtained by installing screens with different apertures.Besides,the whole machine is made of stainless steel.The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the national standard and the GMP requirement. Product Parameters

Model	PL-UC20	PL-UC30	PL-UC40	PL-UC60	PL-UC80
Capacity(kg/h)	30-150	30-330	50-450	80-560	120-750
Speed of principle axis (rpm)	4500	3800	3400	3000	2100
Size of input granule (mm)	10	15	18	20	25
Finished products fineness (mesh)	10-120	10-120	10-120	10-120	10-120
Power (kw)	4	7.5	11	22	30
Weight(kg)	230	350	450	700	1200

Feature
1) Simple structure,easy in installation and maintenance.
2) Adopting advanced world famous brand components in bearing,electric parts and operation parts.
3) Running in a high automatization and intellectualization,whole sealed design,no pollution
4) Apply a linker to connect with the air conveyor,screw conveyor ,which can directly inline with mixing machine,filling machine,packing machine .

Detailed Photos
Rotated Pin Screen Wator cooling inlet
Product Application

Other related products
Vacuum conveyor Vibrating sifter Bag filler



Packaging & Shipping
Q1. Are you trading company or manufacturer? A:We're manufacturer. We have our own factory and experienced technicans. Q2. What is your terms of payment? A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. What is your terms of delivery and delivery time? A: EXW, FOB, CFR, CIF, DDU, etc. Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4: Could you provide technology support? A: We're in this field more than 20 years. lf there's any problem,please contact with us,we'll provide suggestion from our engineer to help you solve problem. Q5.What is the MOQ of customized products?
A: We are manufacturer and can provide you small MOQ for customized products. Q6. Do you test all your goods before delivery? A:Yes, every products will be test before delivery. Q7: How do your after-sale service work if the product got damaged? A: In the guarantee period, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Vulnerable parts do not include.) Q8: How do you make our business long-term and good relationship? A.1. We keep good quality and competitive price to ensure our customers benefit . 2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Q9: Does Cobro has oversea selling company or branch office? A:So far, we have some oversea business partner.And if you like to sell our products or with your own brand, we'd like to provide diversified support for you to do local market.

---
