Corken 691 Reciprocating Oil-Less Lubrication LPG Gas Booster Compressor

Product Description

Product Description

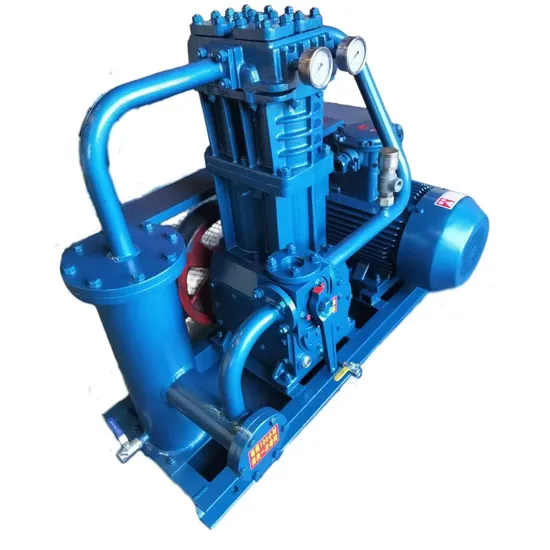

ZW series free-oil lubricate LPG compressor
ZW series of liquefied petroleum gas recycle compressor is vertical, single acting, air-cooled, oil-free lubrication, reciprocating piston unit. This series compressor cylinder & packing components are oil-free to ensure the purity of its working medium. Crankshaft, connecting rod, cross head components are pressure lubrication (splash lubrication) to ensure the reliability of lubrication.Excellent complement, satisfied performance, light weight, small occupying area, more compressing ratio, smooth running, long service life of spare parts,simple operation, reliability and easy maintenance. ZW series compressors have both fixed or movable types; both normal atmosphere (0.1~1.5MPa) and high pressure (1.6~2.4MPa) to meet different requirements of customers.

Detailed Photos
Product Parameters

Model No.		ZW-0.4/ 10-16	ZW-0.5/ 10-16	ZW-0.6/ 10-16	ZW-0.8/ 10-16	ZW-1.0/ 10-16		ZW-1.3/ 10-16		ZW-1.6/ 10-16	ZW-20/ 10-16
Item
M3/Min nominal volume of flow		0.4	0.5	0.6	0.8	1.0		1.3		1.6	2.0
MPa rated delivery pressure		1.6	1.6	1.6	1.6	1.6		1.6		1.6	1.6
MPa rated intake pressure		1.0	1.0	1.0	1.0	1.0		1.0		1.0	1.0
ºC intake temperature		≤40	≤40	≤40	≤40	≤40		≤40		≤40	≤40
ºC delivery temperature		≤110	≤110	≤110	≤110	≤110		≤110		≤110	≤110
r/min speed		750	980	775	550	750		850		1000	750
Lubricating-mode	crankshaft connecting rod crosshead
	cylinder,temperature
lubricant temperature		70	70	70	70	70		70		70	70
electrical motor type		YB132S-4(5.5kw)	YB132M-4(7.5kw)	YB132M-4(7.5kw)	YB160M-4(11kw)	YB160M-4(15kw)		YB80M-4(18.5kw)		YB180L-4(22kw)	YB200L-4(30kw)
kg weight		410	430	430	550	580		630		660	910
L×W×H overall dimensions		1100×980×750					1400×1180×830
flange standard		DN40,PN25(JB/T81-94)					DN50,PN25(JB/T81-94)
