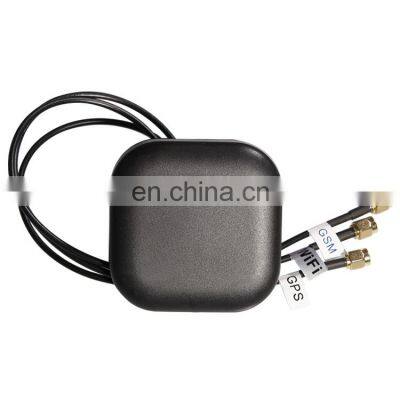

3 in 1 850/900/1800/1900/2100MHz GSM GPS Wifi Antenna, 2G GPS WiFi Antenna

Product Description

Product Description
Description（i）Dielectric AntennaCenter Frequency（MHz）：1575.42±3VSWR：1.5:1Bandwidth（MHz）：±5Impedance（Ω）：50Peak Gain ＞3dBi Based on 7cm×7cm ground planeGain Coverage ＞-4dBi at –90°＜0 ＜+90°(over 75% Volume)Polarization：RHCP（ii）GSM AntennaCenter Frequency（MHz）：850/900/1800/1900/2100VSWR：2.0:1Impedance（Ω）：50Typical Gain：2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz（iii）Wifi AntennaFrequency（MHz）：2400-2500VSWR ≤1.5Gain（dBi）：2.15Impedance（Ω）：50Polarization：Vertical（iv）LNA/FilterLNA Gain(Without Cable) ：28 dBi TypicalNoise Figure（dB）：1.5Filter Out Band Attenuation (f0=1575.42 MHz)7dB Min f0+/-20MHz;20dB Min f0+/-50MHz;30dB Min f0+/-100MHzVSWR ＜2.0DC Voltage（V）：2.7/3.0/3.3/5.0/3.0 to 5.0 etc.DC Current（mA）：11 Max（v）MechanicalWeight（gram ）＜240Size（mm）：70×70×14Cable GPS（m）：RG174 2,5 etc.GSM（m）：RG174 2,5 etc.Wifi（m）：RG174 2,5 etc.Connector GPS：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX/FAKRA etc.GSM：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX/FAKRA etc.Wifi：SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX/FAKRA etc.Mounting：Screw(Hole/Roof)/Magnetic/adhesiveHousing：Black（vi）EnvironmentalWorking Temp：-40℃~+85℃Storage Temp：-45℃~+100℃Vibration：Sine sweep 1g(0-p)10~50~10Hz each axisHumidity：Humidity95%~100%RHWeatherproof：100%WaterproofWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC

---
