4-Port 2.5G POE+ Industrial-Grade DIN-Rail Unmanaged fiber/optical Ethernet Network Access Switch _OEM/ODM

Product Description

Product Features

Supports 4*2.5G electrical ports , 4 of which support POE/POE+, and 2*10G SFP+ slots; Support IEEE802.3af&at PoE standard, the maximum output power of the whole machine is 120W ; Gigabit electrical port 10/100/1000/2500M adaptive, full/half duplex, MDI/MDIX adaptive mode; The power supply supports overload protection, reverse connection protection and redundancy protection (LV); Plug and play, convenient and fast; IP40 protection level, no fan heat dissipation ; Industrial-grade power supply design, multiple power input options are available to meet users' flexible application needs; -40ºC~75ºC operating temperature, meeting industrial application scenarios . Default guide rail, optional wall mounting.

Switch Parameters
Network Interface
Port Description	Supports 4*2.5G electrical ports , 4 of which support POE/POE+, and 2*10G SFP+ ports
Power Supply
Power input	DC power supply: Dual redundant power supply 54VDC (52~57 VDC ), 4-pin terminal
Power consumption	<8W
Protect	Support overload protection, reverse connection protection and redundancy protection (LV)
POE Features
POE power supply standard	Support IEEE802.3af/at standard POE power supply
Single port output power	15/30W, IEEE802.3af/at
Power supply pin	1/2(+), 3/6(-); 4-core power supply
Technology
Ethernet Specifications	IEEE 802.3: 10Base-T
	IEEE 802.3u: 100Base-TX and 100Base-FX
	IEEE 802.3z: 1000BaseX
	IEEE 802.3ab: 1000Base-T
MAC address table	4K
Priority Queue	8
Jumbo Frames	12 K bytes
Processing	Store and Forward
Switch Features	Switching delay time : <10μs
	Switch backplane bandwidth : 20Gbps
Mechanical Properties
Dimensions (W x H x D )	35 x 130 x 88 mm
Protection level	IP40
Installation	Default guide rail, optional wall mount
Weight (g)	≤1KG
Environment
Storage temperature	-40~85 ºC
Operating temperature	-40~75 ºC
Working humidity	5%~95% no condensation
Certification
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD)	Contact discharge 6 kV, air discharge 8 Kv
	EN61000-4-3 (RS)	10 V/m, 80MHz~ 1 GHz
	EN61000-4-4 (EFT)	1 kV for signal terminal, 2 kV for power input terminal
	EN61000-4-5 (Surge)	Power input: 2kV (line/ground), 1kV (line/line)
	EN61000-4-6 (CS)	10 V, 150 kHz~80 MHz
Shock	IEC60068-2-27
Fall	IEC60068-2-32
Shock	IEC60068-2-6
Security Level	EN 62368-1 (LVD)
Warranty	5 years

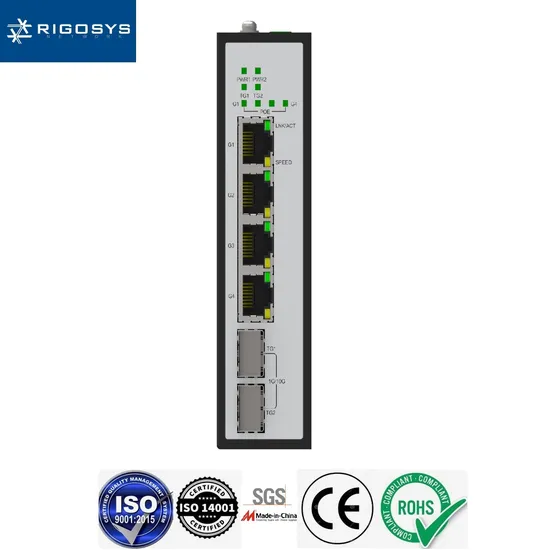

Switch Size

Product Model
Model	Description
RIS3306P- 4NT2XP-4P-L9D	Industrial-grade DIN-rail unmanaged switch, 4 2.5G Ethernet PoE + ports, 2 10G SFP+ slots, wide temperature range -40~+75ºC, dual-channel DC 52V~57V power supply

Certifications
Production Process
FAQ:
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized expert service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What's the payment type?
A: T/T.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.

OEM/ODM or more requirements, welcome to contact us.

---
