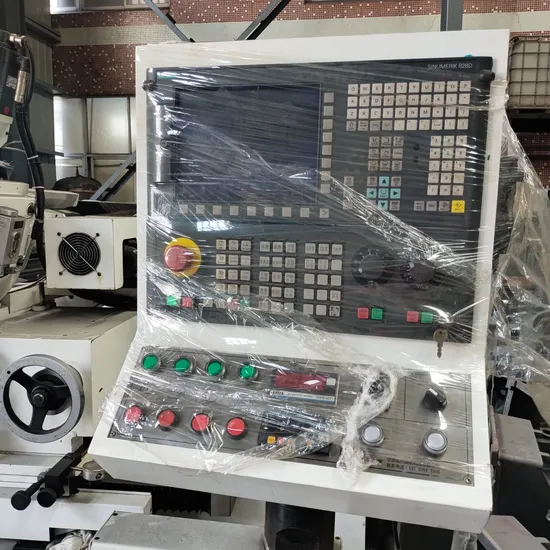

Gy Brand Germany Siemens 828d Operating System Grinder Grinding Machine

Product Description

Company Profile
We CCMS is a OEM factory, accpet customerized. Most of our products are customerzation.The product include gear housing/boxes/reducers, Iron casting products, Aluminum products. Such as auto parts, agriculture parts, and other industrial parts.We have the most advanced testing facilities, such as spectral analyzer for rubber material chemical composition test, tensile strength testing machine, impact value tester and hardness meter, magnetic particle testing machine, sandblasting machine and heat treatment equipment. Besides, there are numerous advanced equipment in the precision machining workshop: have 23 sets CNC lathes, 10sets vertical CNC boring and milling center and one horizontal boring and milling center imported from Korea, two general milling machine, and two general lathes, one grinder, 10sets drilling and tap machines, two half automatic saw, and one Coordinate Measuring Machine (CMM), one Projector and one machining surface quality testing machine and one Mahr altitude instrument. Our product's tolerance can be controlled under 0.01mm. The testing machine's accuracy is within 0.005mm. ISO9000 has been executed.
Product Parameters

Model:	GY305	Grinding range (diameter):	Ø1mm~30mm	Grinding wheel size:	Ø305*150*120mm
Adjustment wheel size:	Ø205*150*90mm	Grinding wheel speed:	1950R.P.M./min	Adjustment wheel rotation speed:	1-300 RPM./min
Grinding wheel drive motor:	5.5 kw; AC380/50Hz	Adjustment wheel drive motor:	2Kw;AC200/50Hz	Hydraulic pump drive motor:	1HP(0.75kw) ; AC380/50Hz
Cooling pump drive motor:	1/8HP(90W) AC380/50Hz	Calibration of adjustment wheel feeding hand wheel:	3.5mm/Revolution 0.02mm/each graduation	Calibration of adjustment	7mm/Revolution 0.05mm/each graduation
Table setting minimum servo feed:	0.0002mm	Calibration of grinding wheel modified feeding hand wheel:	1.5mm/Revolution 0.01mm/each graduation	Calibration of adjustment whee modified feeding hand wheel:	2.0mm/round ; 0.01mm/scale
Adjustment wheel tilt Angle:	plus 5 ~ minus -3 °	Adjustment wheel rotation Angle:	+/- 5°	Mechanical dimensions (L * W * H):	1750*1400*1450mm
Packing size (L* W * H):	2000*1500*1750mm	Machine weight:	1850kg	Packing weight:	1950kg

Our Advantages
1. 20 years of experience in manufacturing and exporting2. OEM and custom-made service3. All kinds of castings can be manufactured according to the drawings, samples or specific industry standard4. Strong engineering team makes high quatliy5. The coordinated service(casting, machining and surface treatment) make lower price if possible6. Advanced-level equipments7. Full material testing process and quatliy control system8. Quality assurance and delivery on time
