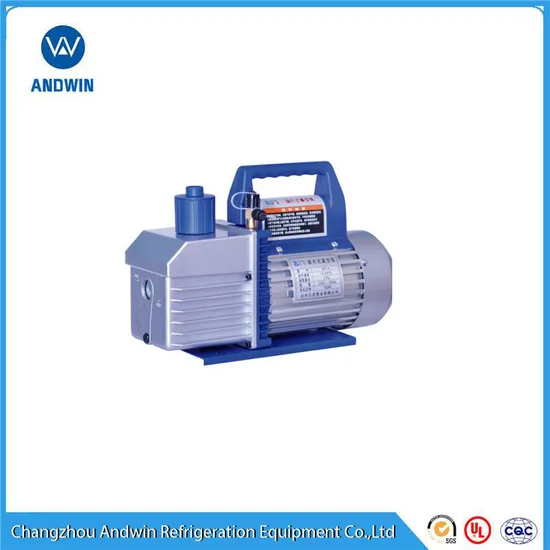

Dual Stage Vacuum Pump Vp Series

Product Description

With Automatic high speed flow and compensation function under the setting pressure.Comparing with fixed displacement vane pump,it has lower consumption and heat radiation;
Stable and noiseless in operation,especially suitable for machine tool and accord to requirements of housed activities.
It contains mechanical pressure adjustment;For an arbitrary choice
Specifications:
1.CE certificate
2.LVD certificate
3.For air conditionin
4.Small,light,nicelooking.
Used for:
The vacuum pump is mainly applied in many fields, such as refrigeration maintain, printing machine, medical equipment, vacuum packing, gas analyze and thermoplastic molding ect.
Exact indication of internal system pressure on the vacuum gauge. The vacuum gauge can equip on all models of vacuum pump.
Technical parameters:

Item NO.		VP215(2VP-0.5)	VP225(2VP-1)	VP235(2VP-1.5)	VP245(2VP-2)	VP260(2VP-3)	VP280(2VP-4)	VP2100(2VP-5)
Flow Rate	50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
		42 L/min	70 L/min	100 L/min	128 L/min	170 L/min	226 L/min	283 L/min
	60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
		50 L/min	84 L/min	114 L/min	142 L/min	198 L/min	254 L/min	340 L/min
Ultimate vacuum		3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa
		20 microns	20 microns	20 microns	20 microns	20 microns	20 microns	20 microns
Power		1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP	1HP
Inlet Port		1/4"Flare	1/4"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare
Oil Capacity		180ml	280ml	350ml	340ml	600ml	600ml	700ml
Dimensions(mm)		260x122x220	270x122x220	320x134x232	320x134x232	370x140x250	370x140x250	390x140x250
Weight		6kg	7kg	10.5kg	11kg	15kg	15.5kg	16kg

Pump oil:
All plugs reference of vacuum pump:
Package:
FAQ
Q. What are the payment terms?
A. 30% deposit upon confirmation of order and 70% balance TT before shipment.

Q. Can the air compressor be customized according to preference?
A. We welcome all request and customization.

Q. Do the factory offer OEM products?
A. Yes we can do OEM if our clients authorized us the copyrights.

Q. Are spare parts readily available?
Spare parts are prepared . We stock all spare parts and will courier in urgent cases. Parts are readily available and affordable.
