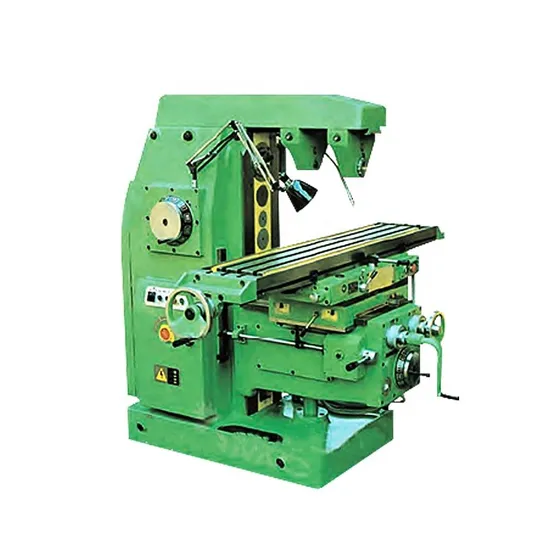

Spindle Metal Vertical Knee Type Universal Rotary Milling Machine

Product Description

Specifications
Main Specification: (X----longitudinal Y----cross Z----vertical)

	unit	X6132
TABLE :-
Table size	mm	1320X320
T T slot	no	3
T Size ( Width )	mm	18
T Centre distance	mm	70
Max. load of Table	kg	500
Max.swivel of table	degree	±45º
machining range :-
-X table Longitudinal travel(manual/auto)	mm	700/680
-Y table Cross travel (manual/auto)	mm	255/240
-Z table Vertical travel(manual/auto)	mm	320/300
MAIN SPINDLE :-
Spindle taper		iso50 7:24
quill travel	mm
spindle speed /step	rpm	30-1500/18
vertical spindle axis to column surface	mm
vertical spindle nose to table surface	mm
horizontal spindle axis to table surface	mm	30-350
horizontal spindle axis to arm bottom	mm	155
arm travel	mm	500
FEEDS :-
X /Y Longitudinal/cross feed	mm / min	23.5-1180/18
Z Vertical/step	mm/min	8-394/18
X/Y Longitudinal/cross rapid speed	mm / min	2300
Z Rapid Traverse vertical	mm/min	770
POWER :-
main motor	kw	7.5
(X/Y/Z) feed motor	kw	1.5
coolant motor	kw	0.125
--others
package dimension	cm	216x178x199
overall dimension	cm	229.4x177x166.5
/ N/W,G/W	kg	2650

Application of machine:
X6132 Series Kness-Type Milling Machine are our coventional products, which include X6132, X5032, X6232B etc. More than 10 types. The annul output reaches to 2, 000 sets. They are all "the Excellent Quality products" Which is awarded by both the Ministry and the province. The base casting has high rigidity and good steadings. The spindle transmission adopts 18 steps gear drive with wide rage of drive as well as wide machining range.
X6132 Series Milling Machine are in Common use and interchangtable. It can equipped with accessories such as dividing head, rotary table, rotary table, boring head, transmission box, Milling Chuck, machine vise tec. To widen the machining range.
X6132 Series'electrical control reaches the state standard GB/T52261-1996 thus the safety and reliability are improred.
X6132/1 Series milling Machine equipped DRO on both the Longitudinal and cross directions, realizing the dynamic Notion of the machinery being shown digitally and improving machine accuracy as well as productivity.
X6132A Milling Machinery improre transmission efficiency and reduce labor intensity by use of ball screw in the feed trans-mission.
X6232B Universal Rotary Head Milling Machine was transformed form X6132. It is added with overarm and an universal Milling head. It is drived by a single motor and form a single part. The Universal Milling head can be used as Milling head but also can be rotated 360 in two directions. Equipped with the spindle sleeve. It can stretch out and back, machine any angle oblique plane and hole. The difference between X6232C and X6232B is that X6232C has 45 rotary face, reducing parallel Vertical rotary, so that can machine any plane, groove and hole in any space and angle.
Packing list

N0.	Name	Model	Qty
1	Machine	X6132	1
2	Mill chuck(7:24)	ISO50(4,5,6,8,10,12,14,16)	1sets
4	wrench	S17-19,S21-24,S27-24,S32-36	each 1
5	Single head wrench	14	1
6	Inner-haxagonal spanner	5,8,10	each1
7	Shell end milling abor	ISO50-ф40	1
8	Reduction sleeve	ISO50/MT4	1
9	Oil gun		1
10	Horizontal draw bar	M24-M16	1
11	Horizontal milling bar	Φ22,ф27,ф32	Each 1sets
12	Foundation bolt	M20X500	4sets
13	Operation manual		1
14	Quality certificate		1
15	Packing list		1

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
