A2 A4 Paper Sheet Thermal Heat Lamination Machine

Product Description

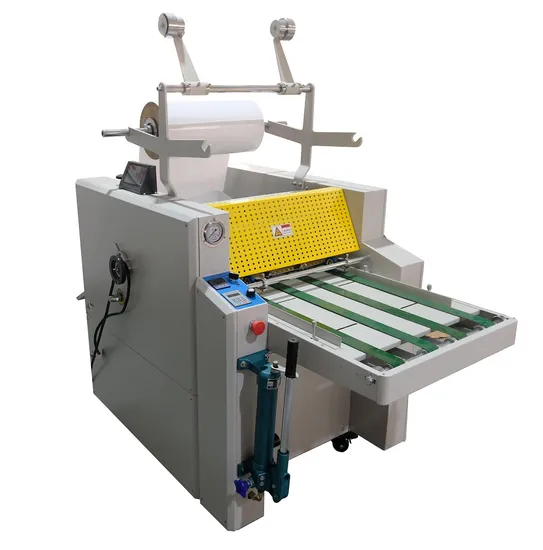

SWFM520C/720C/920C Hydraulic automatic cut laminating machine
oil heating
With automatic cut
With overlap function
SWFM-520C / 720C hydraulic oil heating semi-automatic laminating machine (with pull off), the aircraft covers an area of small, easy to operate, fast, with automatic temperature control, anti-curl set, South Korea imported silicone. Manual pressure. Users only need to enter the meter on the need to break the length of the paper, you can complete the film after the pull off the rear plate with a receipt.
The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.
The main machine parameters

Model	SWFM-520C	SWFM720C	SWFM920C
Max paper size	490x580mm	690x580mm	890x580mm
Mini paper size	150x200mm	150x200mm	150x200mm
Operating speed	0-25m/min	0-25m/min	0-25m/min
Laminating temperature	50-120ºC	50-120ºC	50-120ºC
Total power	4kw	4kw	5kw
Dimensions(LxWxH )	2x1.1x1.4m	2x1.3x1.4m	2x1.5x1.4m
Pressure	3~6Mpa	3~8Mpa	3~8Mpa
Pressure mode	Manual	Manual	Manual
Voltage	220V/50Hz	220V/50Hz	220V/50Hz
roller diameter	220mm	220mm	220mm
Feeding mode	by hands	by hands	by hands
Slitting function	with	with	with
Anti-curl function	with	with	with
Auto pull of film after laminating	Yes	Yes	Yes
With overlap	with	with	with

---
