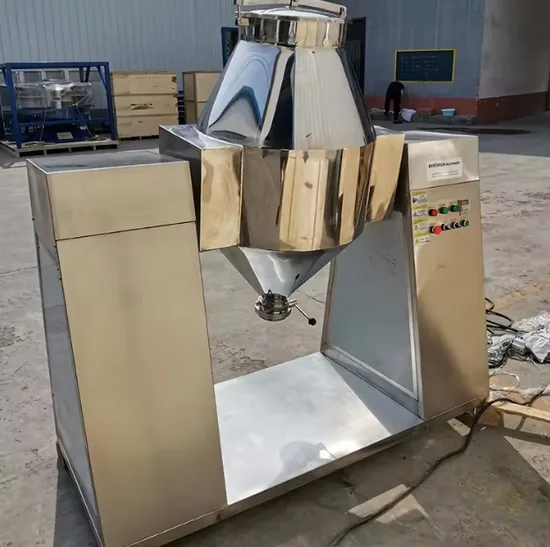

Metal Powder Double Cone Mixer Blender

US$2,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XM-50
Application
Granules, Powder
Application Area
Food
Certification
CE, ISO
Condition
New
Control System
PLC Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
10-50L
Safety Features
Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Speed Control
Variable Speed
Speed Range
40-49 R/min
Stirring Type
Spiral
Temperature Control
Without Cooling System
Working
Convection Mixer
Material
Stainless Steel 304/316L
Mixer Type
Double Screw Cone Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating type
Cycle Operating
Warranty
1year
Transport Package
Wooden Box
Specification
per model
Trademark
RONGXIN
Origin
China
Production Capacity
10000/Year

Product Description

Product Description
Working principle of mixer
The working principle of mixer is to mix a variety of different materials together by using the stirring and mixing structure inside the machine. The mixer usually uses a two-way mixing barrel driven by the device gear, and there is a set of efficient mixing agitators inside the mixing barrel. When the agitator rotates, the medicine and other materials are forced to rise along the inner wall of the barrel, and are randomly mixed with the stirred powder. The mixer can also be designed and adjusted through different equipment to adapt to the mixing ratio of different materials, so as to achieve a better mixing effect.
Product Parameters

Model Volume(L) Max loading volume (L) Max loading weight (Kg) Mixing Time (min) Motor(KW) Mixing Speed
(r/min)		 Overall Dimension
(L×W×H)mm
XM-50 50 25 25 0-99 1.1 20 1500*450*1200
XM100 100 50 50 0-99 1.5 20 1550*550*1350
XM-200 200 100 100 0-99 2.2 20 1800*700*1500
XM-300 300 150 150 0-99 3 20 2100*760*1760
XM--500 500 250 250 0-99 5.5 20 2320*950*1920
XM--1000 1000 500 500 0-99 7.5 10 2450*1050*2500
XM--1500 1500 750 750 0-99 7.5 10 2900*1300*2700
XM--2000 2000 1000 1000 0-99 11 8 3000*1400*3100
XM--2500 2500 1250 1250 0-99 11 6 3600*1400*3200
XM--3000 3000 1500 1500 0-99 15 6 4000*1500*3500
XM--4000 4000 2000 2000 0-99 15 6 4800*1300*3800
XM--5000 5000 2500 2500 0-99 18.5 5 5400*1300*4000
XM--6000 6000 3000 3000 0-99 22 5 5650*1300*4380
Detailed Photos
Application

Customer Reference

Certifications
