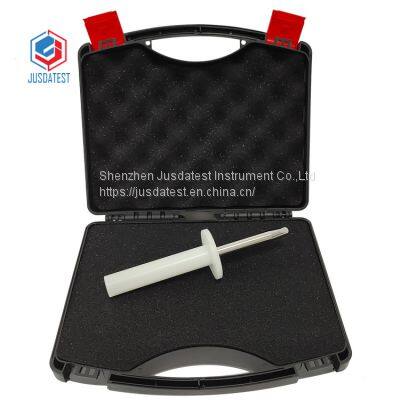

IEC61032 Figure7 ∅12 mm Jointless Rigid Finger Probe 11

Product Details

Product Description

Product Description
IEC61032 Figure7 ∅12 mm Jointless Rigid Finger Probe 11
Product description:
It meets the requirements of IEC61032 Figure 7 Test Probe 11, IEC60065, IEC60598, IEC60335, and other standards. It is used to check the parts that prevent the human body from touching, and it can also be used to check the mechanical strength of the holes of the casing or the baffles inside the casing.

Technical parameter:
1. Rigid finger diameter: 12 mm
2. Straight pointing length: 80mm
3. Diameter of baffle: 50mm
4. Thickness of baffle: 5mm
5. Reference standards: IEC60335,IEC60601,IEC60065、IEC61010、 IEC61032 Figure 7
Sherry Xu
Tel:+86-0755-21518810
Email:sherryxu@jusdatest.com

---
