Fluid Bed Jet Mill for Pharmaceuticals/ Pesticides

Product Description

Product Description

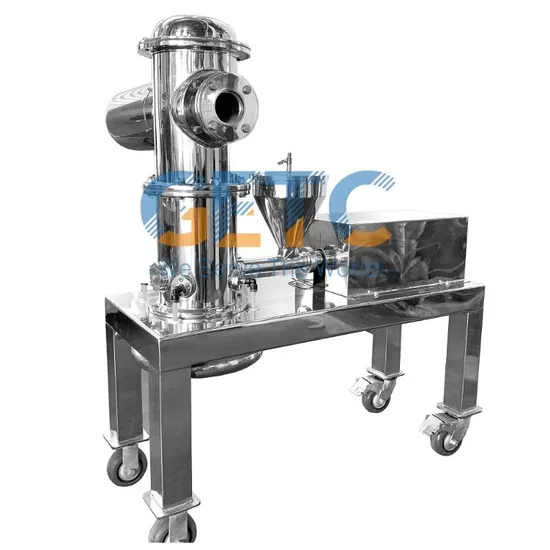

DCF series jet mill is a fluid bed jet mill which features opposed grinding nozzles and a dynamic classifier. Air or inert gas at elevated pressure is injected through specially designed nozzles directly into the grinding chamber of the mill, creating a sonic or supersonic grinding stream. Raw feed is automatically introduced to the mill chamber by an interlocked feed control system.
The agitation provided by the grinding chamber and nozzle design cause particles to become entrained in the air or inert gas stream. Particle size reduction is accomplished by high velocity collisions between particles. Small particles are then swept towards the classifier which rotates at high speed above the grinding. The speed of the classifier is preset for the proper sized product and is electronically controlled. Material which is fluidized fine enough to overcome the inertial force generated by the classifier escapes the jet mill and is collected as product. Oversized particles are recycled by the classifier back into the grinding chamber for further reduction.
With the advanced design of the integrated, dynamic classifier, particle size distribution can be more easily controlled. Efficient use of compressed air and total system automation ensure manufactured product is of the highest quality. Capable of grinding dry powders to 0.5~45 micron averages with specific top size and/or bottom size requirements.

Features
• Classifier wheel arranged horizontally in the classifier top section.
• Laboratory up to Production Models.
• Cool and contamination-free grinding.
• Rapid cleaning and easy validation.
• low production loss.
• Top sizes as fine as D90 of 1 micron.
• Low noise (less than 75 dB).
• Variable speed classifier wheel for precise classification.
• Feature a Ceramic, PU lining to different materials.
• Be used to grind heat-sensitive products with critical heat limitations.
• Suitable for Chemicals, Minerals, Pharmaceuticals & Food Products.

Applications
• Heat-sensitive materials such as toner, resin, wax, fat, ion exchangers, plant protectors, dyestuffs and pigments.
• Hard and abrasive materials such as silicon carbide, zircon sand, corundum, glass frits, aluminium oxide, metallic compounds.
• Highly pure materials where the requirement is contamination-free processing such as fluorescent powders, silica gel, special metals, ceramic raw materials, pharmaceuticals.
• High-performance magnetic materials based on rare earth metals such as neodymium-iron-boron and samarium-cobalt. Mineral raw materials such as kaolin, graphite, mica, talc.
• Selectively ground composite materials such as metal alloys.
Product Parameters

Model	Air Consumption (m3/min)	Working Pressure (MPa)	Target Size (micron)	Capacity (kg/h)	Installed Power (kw)
DCF-50	1	0.7-0.85	0.5-30	0.5-3.0	8
DCF-100	2	0.7-0.85	0.5-30	3-10	16
DCF-150	3	0.7-0.85	0.5-30	10-150	40
DCF-250	6	0.7-0.85	0.5-30	50-200	60
DCF-400	10	0.7-0.85	0.5-30	100-300	95
DCF-600	20	0.7-0.85	0.5-30	200-500	180
