Tongda Tdga568 New High Precision China Speed Weaving Fiberglass Warping Machine

Product Description

Fiberglass Warping Machine
Suitable for guide the fiberglasss on creel into Steel reeds; after evenly arranging, coil onto the weaving beams for the use of beaming or sizing or weaving machines.

Automated operation
Adopt Germany Siemens PLC to take the safe, reliable and automatic control on programs. Adopt the technology of frequency conversion to ensure the constant line speed for winding.

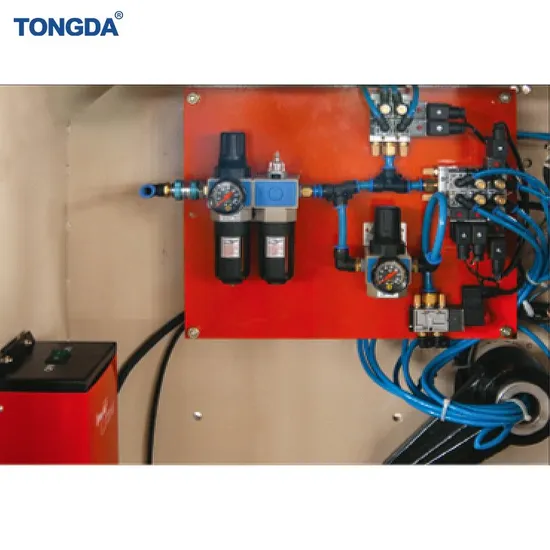

Pneumatic controlling system
The ups and downs of spindle shaft are controlled by cylinder. Steel reeds' transverse movement is controlled by the electrimotor. Main electric motor drive to rotate the spindle shaft through reduction device.

Electric controlling system
10.4 inches touchable screen is easy for operation and it can also display huge information such as line speed,length and cloth length, three outputs of a shift and a month as well as the location of malfunctions.
Safe and reliable
Equipped with static elimination device. Equipped with safety rails and safety infrared rays switches to ensure the operator's safety. Light-electric breaks stop motion,lying in front of cruelty to execute the collective automatic stops, the auto-stop motion is sensitive and reliable.
Precise adjustment
Magnetic powder brakes control the adjustable tension of pinned yarns. Roller presses spindle shaft to make it flat and reach the idea foiling density. Measuring the length, the line speed adopts Japan's Koyo encoding device. Adjustable wrapping breadth.
Finished product display
Main technical parameters

Speed	10-160m/min
Efficient breadth	1280,3800mm(or optional)
Weaving beam plate diameter	φ550 mm,φ800mm
Steel reeds' motion could be adjusted to 0-15 mm to left and right with the frequence of 22 times per minute
Braking form	pneumatic round plate clamping brake
Braking distance	≤1m(100m/min)
Pressurizing method	Suspending arm for pneumatic pressurizing with step-less adjustments and pressure meters
Operating screen	6 inches touchable screen
Creel winding density	0.8-1.8g/cm³
Creel form	Rectangle
Fiber moving form along creel	inner movement or outer movement
Spindles' distance on creel	180,200 mm(optional)
Yarn tension device	double columns, rings compensation (optional)
Number of spindles	800-2400 spindles (Optional)
Power of main electric motor	11KW
Input voltage	380V±10%

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

---
