Da18K4 18000W 4 Channel 1u Class D Digital Professional Audio Speaker Stereo DSP Power Amplifier

Product Description

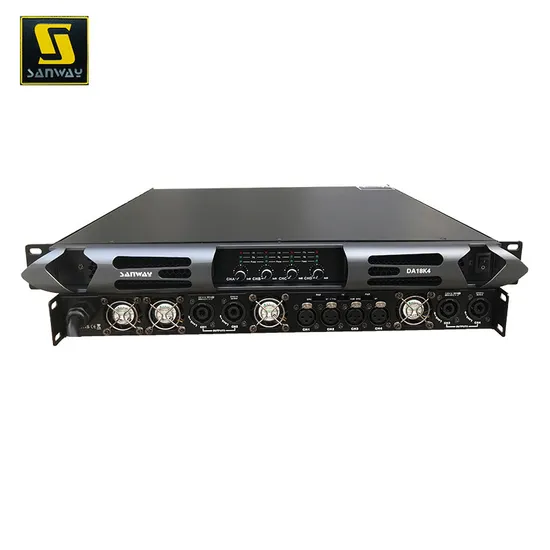

DA18K4 18000W 4 Channel 1U Class D Stereo Audio Power Amplifier

Product Description DA18K4 4 channel class d amplifier very compact and lightweight stereo power amplifier in a 1U rack mountable housing, is designed for medium and big live or installed application.
DA18K4 class d audio amplifier is a flexible and reliable power amplifier deliver 4x1800W at 8 ohms, 4x2800W at 4 ohms, 4x4500W at 2 ohms reliable power and pristine sonic performances.

Product Features 1>. Amplification
Class-d power amplification with Nichicon capacitors and high efficiency cooling heatsink provide low heat and high efficient performance.
2>. Power Supply
The power supply with PFC (power factor correction) permits world wide AC acceptance and direct connection to any regional power line configuration from 50V to 350V provide stable performance
3>. Cooling Syste
DA18K4 features Nidec fans, an advanced, thermal dependant fan assisted convection cooled system. The fan system is dependent upon the internal ambient temperature of the unit and runs as high or low levels depending on the amplifier's cooling demands.
4>. Protection
Ideal for long-term reliability in any audio application, the output of DA18K4 is fully protected from short circuits, DC voltage, turn-on/off transient, current inrush.

Product Parameters

ITEM	DA18K4
8Ω Stereo Power(RMS)	1800W ×4
4Ω Stereo Power(RMS)	2800W ×4
2Ω Stereo Power(RMS)	4500W ×4
8Ω Bridged Power(RMS)	5600W x2
4Ω Bridged Power(RMS)	9000W x2
Frequency response 8Ω, 20Hz--20kHz , 1/8 rated power	±0.5dB
1KHz THD:	0.01-0.03%
Signal-to-Noise Ratio 8Ω, 1kHz, 1v Sensitivity	>=104dB
Input sensitivity (rated power 8Ω)	0.775V/1V/32dB selectable
Cross- talk( 20Hz- 1kHz, below Rated Power )	>=70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Neutrik speakON
Class	D
TourClass Protection	Under voltage, DC, Over temperature, Over load limiter, short protection
Operating voltage	90V-260V
Input impedance	20kΩ(Balance), 10kΩ(Unbalance)
Damp Factor	>=5000
Dimensions(WXHXD)mm	480x430x44mm
Packing dimension (mm)	532x522x103mm
Net weight(kg)	10.3kg
Gross weight(kg)	13kg

---
