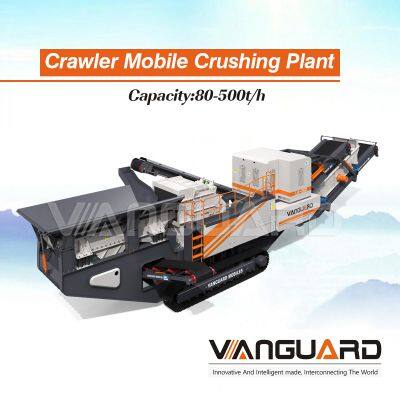

High Capacity Mining Rock Crushing Line Crawler Type Mobile Jaw Stone Crusher
Vanguard Machinery crawler mobile crushing plant is an intelligent mobile crushing plant specially developed for quarrying mining and resource recycling industry. The equipment is advanced in technology, safe and reliable, also with high productivity and various Vanguard Machinery integrated crawler crushing and screening plant is a combined equipment composed of crusher, vibrating screen and return device, which ensures high crushing efficiency while maintaining good mobility. The equipment is convenient to transport, and can be put into use quickly after a short time of simple settings, so as to save the on-site production time.
PRODUCT PARAMETERS
Model
| LA-116
| LA-106
| LA-96
|
Vibrating Feeder
| LD1245
| LD1145
| LD3895
|
Hopper capacity of feeder(m³)
| 6
| 5
| 5
|
Loading height(mm)
| 4300
| 4100
| 3900
|
Waste conveyor belt
| B1200
| B1000
| B800
|
Discharge height(mm)
| 3400
| 3200
| 3100
|
Crusher Model
| 6CX110
| 6CX106
| 6CX96
|
Max Feed Size (mm)
| 1100X850
| 1060X700
| 960x580
|
Permanent Magnetic Separator
| RCYD12
| RCYD10
| RCYD8
|
Diesel engine
| 132
| 106
| 96
|
Total power (kw)
| 196.2
| 141.4
| 112.9
|
Total Weight (g)
| 65t
| 50t
| 38t
|
Transport size(mm)
| 15200X3200X3700
| 14900X3000X3600
| 14200x2900x3470
|
Special Design of different models of the mobile crushing plant will be available upon request.
STRUCTURAL FEATURES
▲Super heavy-duty rotor, high wear- resistant material and large crushing chamber, so that it has large feed size, stable product, high capacity, good aggregate shape and large crushing ratio.
▲It is automatic retract of impact frame and plate hammer clearance, side- out belt conveyor flex, and adjustable hydraulically drive in three sides of the hopper.
▲Extra long crawler chassis, smaller ground pressure and better stability. The high-speed hydraulic motor is driven by a planetary reducer with a driving torque up to 80,000 N/m.
PRODUCT APPLICATION
Processed Material:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc
CUSTOMERS' SITES
Packaging and Shipping
view more >>Recommended by seller
50-100tph Capacity Portable Mobile Stone Crusher Moving Crushing Plant For Sale$20,000.00 - $96,000.00 / set1.0 set
Hot Sale Mobile Aggregate Jaw Crusher Stone Crushing Plant$20,000.00 - $96,000.00 / set1.0 set
Competitive Price 20 Tph Stone Crushing Plant Line Pe 400x600 Jaw Crusher$6,200.00 - $19,000.00 / set1.0 set
Gravel Rock Granite Gold Mining Machinery For Sale Fob Price Stone Symons Cone Crusher$3,700.00 - $56,000.00 / set1.0 set
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
