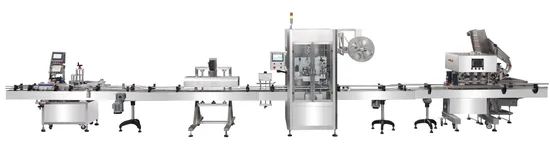

Automatic PVC Shrink Sleeve Labeling Machine for Carbonated Beverage Water Bottle

Product Description

Product Description
Shrink sleeve labeling machine for bottles jars plastic glass container beverage water industry
Brief Introduction
Equipped with PLC control system, imported servo motor, servo drive, frequency changer and sensor, also use positioning module for better accuracy labeling, higher speed and more stable running.
Machine body is made of 304 stainless steel with plexiglass shield, water-proof and resistant to rust.
Synchronous bottle separating, more stable for bottle conveying.
With adjustable blade plate, unique double-sided blade for cut off label in rotary, long service life.

Machine model	TS-200Z/400/600
Capacity	150-200 /400/600bottle/min
Label thickness	0.35mm~0.13mm
Applicable label length	30mm~250mm
Applicable cylinder body diameter	28mm~125mm
Voltage	3P 380V 50/60Hz
Power	2.5/3/6KW
Weight	1200KG
Machine size	L:2100mm W:850mm H:2000mm

Product Features:
1. In order to meet the market demand at home and abroad, our company has developed a double-head structure, which can meet the requirements of simultaneous labeling of bottle mouth and bottle body. 2. One machine with two uses can reduce one standard machine and save cost. 3. Shorten the length of conveying line or avoid secondary handling, improve production efficiency and reduce equipment floor space. Shorten the process flow and improve product quality. 4. This equipment has high precision and is suitable for various bottle types.

Company Profile
Packaging & Shipping
FAQ
Q1. How can you control the quality and delivery?
Quality is very important, we take much attention to control our quality from raw materials to the end. We will test every machine before it leaves our factory to make sure it's working good. Our factory has passed ISO. We also have audit periodically to make sure our products qualified.
Q2. How many days will you finish installing?
We will finish installation and training within 1-2 weeks.
Q3. What do we do if we encounter problem about the machine?
Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
Q4. How long is your machine's warranty period?
All our machine have one year guarantee.
Q5. What's your transportation way?
LCL and FCL by sea, by express (DHL, TNT, UPS) and by air.
Q6. Does your engineer speak English?
Our engineers understand a little English. All of our engineers have more than five years machine installation experience.

---
