Automatic Book Sewing and Folding Machine Vkd-1-U

US$9,995.00
1-4 Pieces
US$9,695.00
5+ Pieces

Basic Info.

Model NO.
VKD-1-U
Condition
New
Certification
CE, ISO9001
Application Place
Factory
Applicable Thickness
Thick Material
Drive
Electric
Thread Number
Six Threads
Needle Number
Four Needles
Weight
580kgs
Voltage
220V
Power
5.2kw
Gross Weight
660kgs
Transport Package
Wooden Carton
Specification
CE
Trademark
VOKEDA
Origin
Shanghai
Production Capacity
200 Sets/Month

Product Description

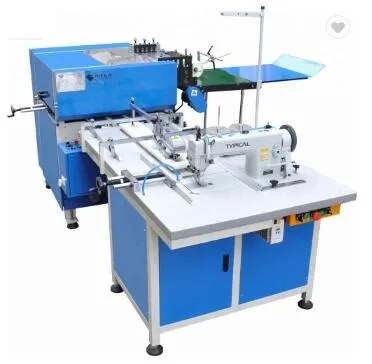

Book central threading and folding machine VKD-1-U Description:
VKD-1-U is a semi-auto mahicne that for threading book. Reverse folding, the beautiful thread is outside. Suitable for the books which without hard cover.

The best machine to replace the Saddle Stitching and can do thicker books. Sewing and folding in one time and cutting the thread automaticly. Using the High sensitivity sensor so that without manual on/off.

High speed and stable, only need 1 person to opetate and very easy to adjust. Highly improve efficiency and save cost.

Feature:
1. Working speed up to 800-1800 books/hr;
2. Sewing pitch can be adjust;
3. Automatic sewing, thread cutting and folding in one machine;
4. High speed and stable, only need one person to operate and easy to be adjust.

Parameter:
Model VKD-1-U
Working speed 800-1800 books/hr
Max. paper size 600*470mm
Power 220V/ 50-60Hz/ 1PH/ 5.2Kw
Air compressor(customer provide) 1.5Kw, 0.6-0.8Mpa
Sewing pitch Can be adjustable
Net weight 580kg
Machine dimension 2830*1500*1500mm
