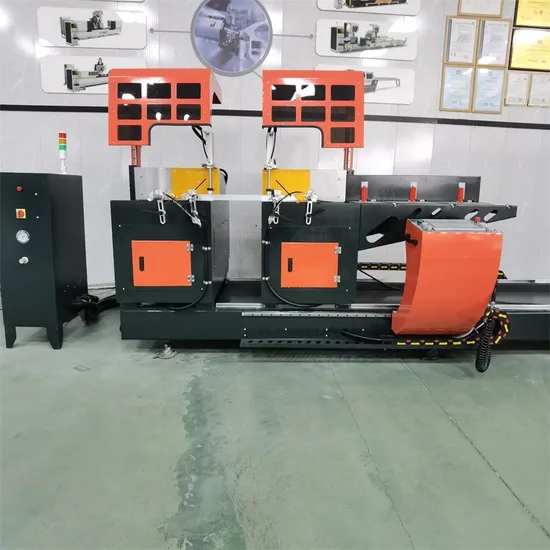

Heavy Duty CNC High-Precision Double Head 45 ° Precision Cutting Saw for Aluminum Profiles

US$6,000.00-19,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
LJZ2Z-CNC-550*4300
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Power Supply
380V/50Hz
Saw Head Motor
2*3.0km 2840r/Min
Working Pressure
0.6~0.8MPa
Air Supply
60L/Min
Cutting Length
410~4300
Cutting Width
Max.210mm
Cutting Height
Max.320mm
Max.Cutting Slop
45° 135X220mm
Cutting Angle
90° 45°
Feeding Speed
0·3m/Min
Saw Blade Specification
Φ600X4.4X30 Z=144
Overall Dimension
5800X1900X1700mm
Weight
2000kg
Transport Package
Wooden Box
Specification
600*4300
Trademark
Seth
Origin
Jinan
HS Code
8461500090
Production Capacity
500 Units/Month

Packaging & Delivery

Package Size
6200.00cm * 1900.00cm * 2200.00cm
Package Gross Weight
2200.000kg

Product Description

Power supply 380V 50HZ
Total power 6.75KW
Saw head motor 2 × 3KW/3000r/min
Servo motor
 750W
Working pressure
 0.6~0.8MPa
Gas consumption
 20L/min
Sawing length
 Max4300mm min 393mm
Sawing width
 max 180mm
Cutting height
 max 145mm
Sawing angle
 45 °
Feed speed
 stepless speed regulation 0-3m/min
Saw blade specification
 ø 550 x ø 30 x 4.4 x Z144
External dimensions
 5800 x 1800 x 1500 mm
Weight
 1950kg
Repetitive length accuracy
 ≤ 0.02mm
Profile cutting angle tolerance
 ± 3 '
Cutting surface flatness ≤ 0.02m


Detailed Photos
Equipment Advantages
1.This is one new designed machine which used for cutting profile of aluminum door and windows curtain wall and corner connector.
2.It has feature of easy operation, reliable performance, advanced technique and convenient maintenance, etc.
3.Imported carbide saw blade gives accurate processing and high efficiency.
4.Two head can work together or single, when together work, one time can cut off the required length and angle.
5.The motor phase sequence protector is in stalled in the circuit system, which improves the security of the system.
