PE Plastic Auto Parts Pipe Blow Molding Machine

Product Description

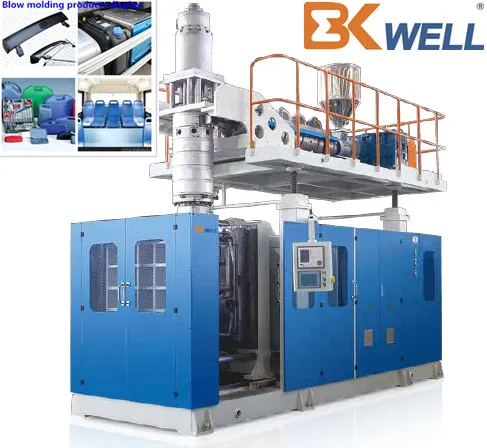

BEK-BM30/50/100/160Blow molding machine for producing car urea box,tool box,automotive seat,auto air duct,auto flow board,bumper and car spoilers (We can offer complete solutions:Mould with auto deflashing,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Performance and advantages
Suitable for producing different kinds of car urea box, tool
box, automotive seat, auto air duct, auto flow board, bumper and
Car Spoilers.
Adopt high output extrusion system,accumulating die head.
According to the different material, optional JW-DB single
station hydraulic screen-exchanger system.
According to the different product size, customized the platen
type and size.
Optinal hydraulic servo control system.
Optinal bottom sealing,take-out robot.
Product Overview:
Technical parameters of machine

Model	Unit	BM30	BM50	BM100	BM160
Max product volume	L	30	50	100	160
Dry cycle	PC/h	600	450	360	300
Die head structure	Accumulating type
Main screw diameter	Mm	80	90	100	100
Max plasticizing capacity (PE)	Kg/h	120	180	190	240
Driving motor	Kw	37	45	55	90
Accumulating volume	L	5.2	6.2	12.8	18
Oil pump motor power	Kw	15	18.5	22	22
Clamping force	Kn	280	400	600	800
Space between platen	Mm	400-900	450-1200	500-1300	800-1400
Platen size W*H	Mm	740*740	880*880	1020*1000	1120*1200
Max. mold size	Mm	550*650	700*850	800*1200	900*1450
Heating power of die head	Kw	20	28	30	30
Machine dimension L*W*H	M	4.3*2.2*3.5	5.6*2.4*3.8	5.5*2.5*4.0	7.5*3.5*4
Machine weight	T	12	13.5	16	20
Total power	Kw	95	110	135	172

Blow moulding machine/extrusion blow molding machine samples:
Extrusion Blow molding machine running in our customer workshop
Different kind of Control system of machine

parts name	country	Brand
PLC and touch screen	Germany/Austria	SIEMENS/B&R
Contactor	France	Schneider
Inverter	China/Germany	JWELL/Rexroth
Parison control system	Japan/Austria	MOOG100/B&R 300
Pneumatic valve	China	Air TAC
Hydraulic Control System	China	Famous brand
hydraulic valve	China	Taiwai Yuken
Take out robot	China	JWELL
Accumulate type Die head	China	JWELL
Driving motor	Germany	SIEMENS-Beide MADE IN CHINA
Gearbox	China	Famous brand
Screw and Barrel	China

seals service network
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA

Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
1. What are BEKWELL (JWELL new company in foshan china) coming from?
BEKWELL(Jwell)made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the TOP 1 extrusion machine supplier in China with 5 factories, 300 design&test engineer, 3000 employee located in Zhoushan, Shanghai, Taicang, Dongguan, FOSHAN, Liyang.
2. Why should I choose Jwell?
We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.
3. Are U the only JWELL in MADE IN CHINA?
Right! There are many many supplier with name Jwell in MADE IN CHINA, but we are the only approval sale manager working in MADE IN CHINA. Please donot be cheated by other company in the name of JWELL screw, Jwell extruder, Jwell line, etc. They're all unhonest and untrustworthy supplier!
For more infomation about Jwell blow-molding machine, please contact :
Jade Liang
Welcome to BEKWELL / Jwell!

---
