12000W-30000W High Power Laser Machines for Cutting Sheet Metals/Steel/Aluminum

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of a type of Double Exchange Platfroms Sheet Laser Cutting Machine:

High Tech Enterprise

HSG Laser, dated back to 2006, as a hi-tech enterprise focusing on R&D, production and sales of laser
equipment, is dedicated to serve global customers with metal forming solutions. HSG Laser has applied for
366 patents in total.

Serve 100+ Countries and Regions

HSG Laser has built 4 standardized manufacturing plants in China, 13 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 200+ R&D personnel
and can produce 8000 sets each year by right of 960000m2 production area.

Professional Research Department Team

Our R&D team has developed 3D fifive-axis bevel cutting, P40 (40000W) autofocus cutting head,double digital
chucks, Alpha T and HSG-X9000 bus system.

Large Variety in Fiber Laser Machines

HSG Laser can serve global users with 30+ kinds of machines , including sheet metal laser cutting machine,
sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine, welding machine and
automation equipment.

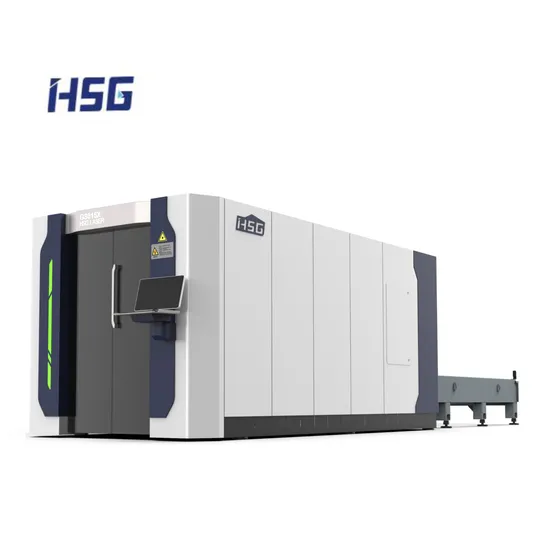

Double Exchange Platforms Laser Cutting Machine 3000W-30000W

* High power refers to 12000W and above. * Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory.
All testing results and experimental data shall be subject to real machine.


Product Description

< Optional Linear Motor >
Work performance free from stroke effects because of linear drive.
No other friction or mechanical contact except for its guideway, so as to relieve parts wear and need little or no maintenance.
No-load speed 200m/min Acceleration 2.5G


< Bus CNC System >

* Bus refers to data transmission mode via on-site bus control system.


< P20 Autofocus Laser Cutting Head >
It can change its laser spot to proper size and shape according to cutting materials and thickness.


Our Advantages
Eco-friendly Cutting

Full-protective Design

Top cover is provided and pneumatic safety door is installed between exchange platforms to prevent smoke dispersion.
Zoning Ventilation
Divide cutting area into left and right zone, outfitted with butterfly valve dampers and outboard 300*300mm full-hollow ventilating ducts.
Positive-pressure Blowing

Blower fans on its top cover and beam offer positive-pressure blowing to press cutting smoke below machine bed.

Competitive Edges of High Power
When 20000W Model Chosen:

Cutting extreme thickness: 60mm CS sheet 80mm SS sheet

Cutting speed: 1mm CS/SS 50-60m/min; 10mm CS/SS 10-15m/min; 20mm CS/SS 1.3-3.6m/min

Cutting effects: Cutting section is smooth and burr-free;

Mirror-like surface is made possible while cutting CS sheet by oxygen.

Specification
Applications
HSG Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	G3015X Pro	G4020X Pro	G6025X Pro
Power	12000W-30000W	3000W-30000W
Processing Format (L*W)	3000mm*1500mm	4000*2000mm	6000*2500mm
X/Y Axis Positioning Accuracy	±0.03mm/m
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.

Sample Display

Office Area
Visit & Exhibition
Certifications

Packaging & Shipping
OUR QUALITY TESTING EQUIPMENT
Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument, Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE
To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.

---
