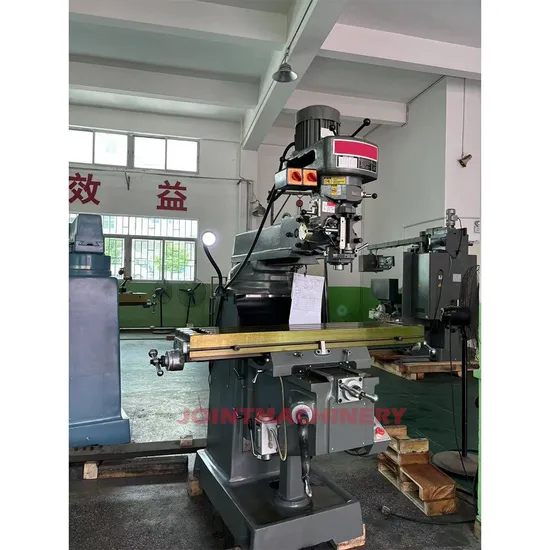

Conventional Milling Machine Tool 3 Axis Turret Milling Machine with Manual Controls for Metal

Product Description

Experience the epitome of engineering excellence with our high-quality castings and precision processing, meticulously crafted to ensure unparalleled precision and rock-solid stability.
√ Spindle tolerance: 0.002mm - Enjoy precise and flawless performance with ultrafine spindle tolerance, setting new benchmarks in accuracy.
√ Benefit from twice precision scraping, a meticulous process that guarantees exceptional processing quality and unmatched precision.
√ Perfect for electronic components, precision holes, intricate slots, frames, and mold processing, delivering versatility for diverse applications.
√ Features the authentic Taiwan original milling head coupled with the renowned Japan NSK P4 precision spindle bearing, ensuring top-tier performance.
1. WORKTABLE
The worktable boasts ultra-audio quenching, precision grinding, and scraping guide, with an optional rotary table for enhanced versatility and precision.
2. TURRET MILLING HEAD
A turret milling head that can swivel 45° (forward-backward) and rotate 90° (left-right), offering the flexibility to mill at unique angles with ease.
3. SPINDLE
Equipped with high-precision R8/NT30/NT40 spindle, featuring a minimal spindle runout of 0.003mm for impeccable machining accuracy.
4. X/Y/Z AUTO FEED
Enhance your machining efficiency with X/Y axis auto feed and Z axis electric lifting, designed to optimize productivity.
5. DRO
Tailor your setup with optional 2-axis or 3-axis DRO based on your specific needs, offering customized control over precision.
Conventional Milling Machine Tool 3 Axis Turret Milling Machine with Manual Controls for Metal

Model				4VA
Table size			mm	1270*254*90
Travel		X axis	mm	900
		Y axis	mm	405
		Z axis	mm	350
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	450
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4530 (16 grade)
		60HZ	rpm	80-5440 (16-grade)
	Rotation speed (Variable speed milling head)	50HZ	rpm	50-3500
		60HZ	rpm	60-4200
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2200
Weight			kg	1400

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of innovative manufacturing and export expertise in the realm of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, along with milling and grinding machines. We are driven by a commitment to deliver exceptional quality and service to our global clientele. Our unwavering focus on quality control ensures our machines not only meet but exceed the highest industry standards. By integrating advanced core technologies from Taiwan and Germany with state-of-the-art production equipment and processes, we offer machines that promise superior quality and reliability. Renowned for their outstanding precision, stability, and dependability, our machines adeptly handle intricate and high-demand machining tasks. Exported globally, our products have earned acclaim and popularity, with a market presence spanning Asia, Europe, South America, North America, and beyond. We foster enduring partnerships with international clients, generating substantial business value together.

---
