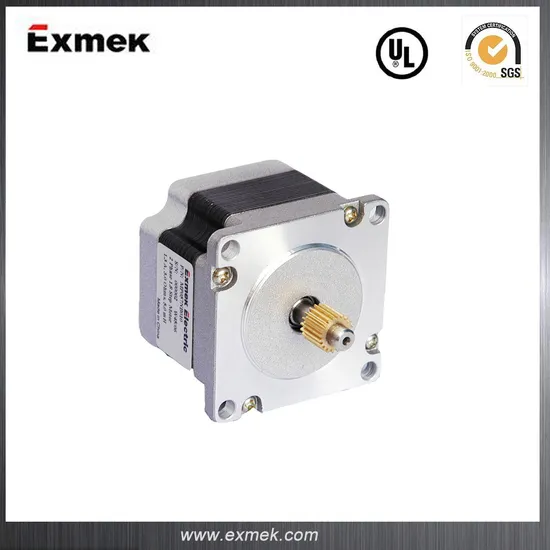

57mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP057SB303)

Product Description

General information Step angle accuracy: 1.8°±5% Temperature rise: 80°C max Ambient temperature: -20°C~+50°C Insulation resistance: 100M(OHMS). min., At 500V Dielectric strength: 500V AC, 1S, 2mA Insulation class: B
Specifications

Part number	MP057SB303
Phase current	2.8A
Phase-resistance	1.13 ohms
Phase inductance	6.1mH
Holding torque	147N/cm
Detent torque	10N/cm
Number of wires	4
Rotor inertia	460g.cm2
Length	78mm
Weight	1000g

Mechanical
Special design available.
Packaging & Shipping
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.
Company Profile Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd. Exmek Electric ---Registered Brand Name Business: Design and manufacture of motion control products and components Highly qualified personnel UL, CE, RoHS certification ISO 9001, ISO 14000 Company Capabilities Modern Motor Design and Manufacture Part Set Design and Manufacture Magnetic Design Software-Motorsolver Molding Shipping world wide Why Exmek Electric Open for general discussion and questions Time to market or theatre of operations can be substantially reduced Talented team of engineers providing innovative technical solutions One stop "supplier" and complete sub-system Quality products provided at competitive low cost Ability to ship world wide On time delivery Training at Customer locations Fast service on return and repair results Many repeated customers Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.

We are open for general discussion and questions. Contact us now!

---
