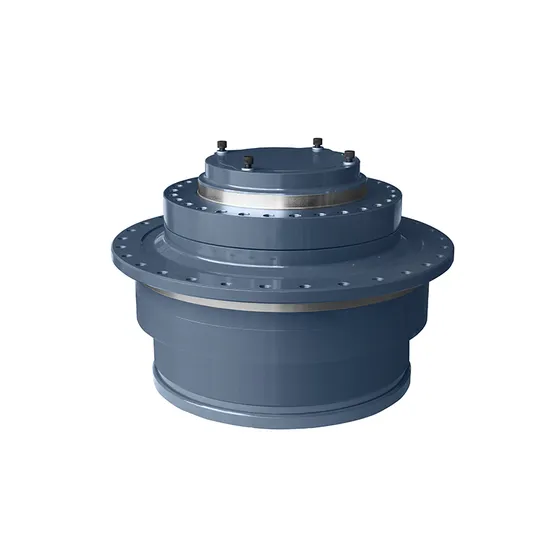

High Reliability Planetary Gearbox Gear Reducer for Excavator Walking Drive

Product Description

Technical Parameter YTXZ(Output Torque 130-600kNm )

Type		Output Torque( Nm )	Ratio( Nm )	Braking Torque( Nm )
YTXZ130T3		130000	81-206	750
YTXZ 160 T3		160000	210.8	1020
YTXZ 220 T3 I		220000	67.7-97.7-188.9-246-293	1100
YTXZ 220 T3 II		220000	67.7-97.7	-
YTXZ 220 T3 III		220000	145.4	1400
YTXZ 220 T3 IV		220000	345	1100
YTXZ 260 T3		260000	188.9	1600
YTXZ 330 T3 I		330000	168.9-209.9-252.0-302.4	2500
YTXZ 330 T3 II		330000	302.4	2500
YTXZ 330 T4 I		330000	826.6	-
YTXZ 330 T4 II		330000	451.7	625
YTXZ 400 R3		460000	95.61-347.1	1450
YTXZ 450 T4 I		450000	421.7	1450
YTXZ 580 T4 I		600000	610	1450

YTXZ(Output Torque 600-1300kNm )

Type	Output Torque( Nm )	Ratio (i)	Braking Torque( Nm )	Application
YTXZ 0600 N/1***	600000	243.5	1X*3,115	ST
YTXZ 0600 N/2***	600000	If in doubt ask	2x*1,200	ST
YTXZ 0600 N	600000	If in doubt ask	2x*1,830	CC
NYTXZ 0800 N	792000	284.8	Integration with motor	ST
NYTXZ 0800 N	984000	386.7	2X*1,830	CC
NYTXZ 1100 N	1117000	401.5	2X*1,700	ST
NYTXZ 1300 N	1300000	458.5	2X*1,700	ST

Type	D1	D2	D3	D4	D5	D6	D7	D8
YTXZ 0600 N/1	680	850	815	30XM39	885	985	1055	24XM29
YTXZ 0600 N/2	830	810	880	41XM30X2	885	965	1020	48XM30X2
YTXZ 0600 N	668	826	889	30XM36X1.5	880	850	900	45XM36X1.5
YTXZ 0800 N	830	980	1050	48XM30X2	920	986	1055	48XM30X2
YTXZ 0800 N	668	826	889	30XM36X1.5	880	850	900	45XM36X1.5
YTXZ 1100 N	1110	1230	1310	48XM36	1040	1180	1226	52XM30
YTXZ 1300 N	1110	1230	1310	48XM36	1040	1180	1226	52XM30

Type	L1	L2	L3	L4	L5	L6	A+B(KN)		Mass(kg)
							C	Co
YTXZ 0600 N/1	60	242.5	459.5	1168	186	62	1320	3150	2500
YTXZ 0600 N/2	58.5	245	464.5	1161	186	62	1320	3150	2600
YTXZ 0600 N	33	405	368	1211.5	248	6	1320	3150	2850
YTXZ 0800 N	25	229	683	1332	69	186	2450	5200	3800
YTXZ 0800 N	66	405	486	1324	244	2	2450	5200	3320
YTXZ 1100 N	60	503	585	1524	318.5	48.5	3900	8650	8050
YTXZ 1300 N	60	503	593	1565.5	319	49	3900	8650	8500

Product Superiority 1.Customized Solutions
·Product structure adopts Patent Technology, fulfilling the requirements of mine and special operation for machinery;
·Larger carrying capacity, smaller power gradient, matched ratio as required;
·Long-term tracking on machine operating based on field research, optimizing with assistant machine;
·Interchangeble same external dimensions, custom-designed for special operating conditions;
·Short supply cycle, prompt response to customer needs.
2.High Reliability
·Ultra-long Service Life: strong crashworthiness, long warranty period;
·Leading Process: all tooth surfaces hardened;
·High Quality of Sealing: no leakage withine warranty;
·Interchangeble same external dimensions,custom-designed for special operating conditions;
·Load Testing: 120% torque overload test;
·Inspection:100% ex-factory no-load test;
·Well-designed: Special design for structure and bearing;
·Stay In Grade: established assembly process,strenathening process controlling.
3.Easy Maintenance
·Simple and reliable structure;
·Easy to install and maintain;
·Easy to change oil and maintain;
·Quick component replacement;
·Simple maintenance structure;
·Adopting a modular modular structure design, without disassembling the gearbox;
·Open the end cover to replace the first and second stage planetary gear parts;
·The gearbox has no vulnerable parts and only requires regular updates of lubricating oil. Company Profile
FAQ
1. Are you a manufacturer or a trading company?We are a factory located in Jiangsu, China, with 20 years of rich experience, covering 70000 square meters.
Complete facilities, including 3D quality inspection equipment, ERP system and 300 machines.
If necessary, we can provide you with material certificates, sample quality inspection and other reports.

2.How to get a quote?
Detailed drawings (PDF/STEP/IGS/DWG...), including quality, delivery date, materials, quality, quantity, surface treatment and other information.
3.Can you provide samples before mass productions?
Of course, the sample fee is necessary. If possible, it will be returned during mass production.
4.How do you control quality?
(1) Material Inspection - Check material surfaces and approximate dimensions. (2) First inspection of production - ensure critical dimensions in mass production. (3) Sampling inspection - check the quality before delivery to the warehouse. (4) Preshipment inspection - 100% inspection by QC assistant before shipment.
5.Which countries is the main markets?
North America, Europe, Oceania, Asia.

---
